BV2AWMN Series 2-Way Mining Ball Valves (Water & Air Applications) are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2AWMN Series 2-Way Mining Ball Valves (Water & Air Applications) can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated brass.
BV2AWMN Series 2-Way Mining Ball Valves (Water & Air Applications) are suitable for water and air applications in mining sector.
| Body Material | Carbon steel |
| Ball Material | Hard chrome coated brass |
| Thread Size | BSP – Rd (Round Thread) |
| Ball Seats | Special sealing equipments |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Applications | Mining sector applications including water and air lines references |

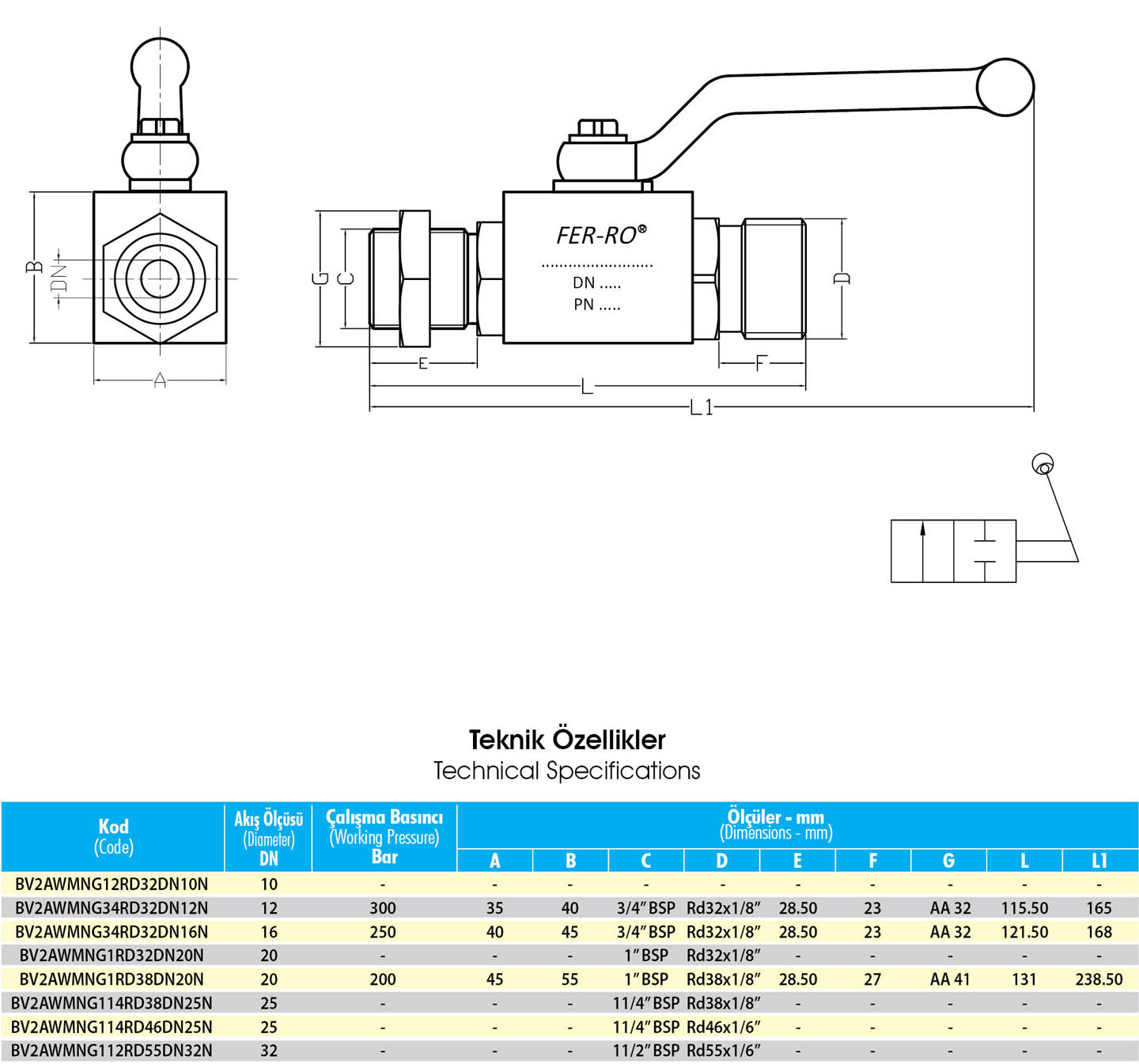

TECHNICAL DATA

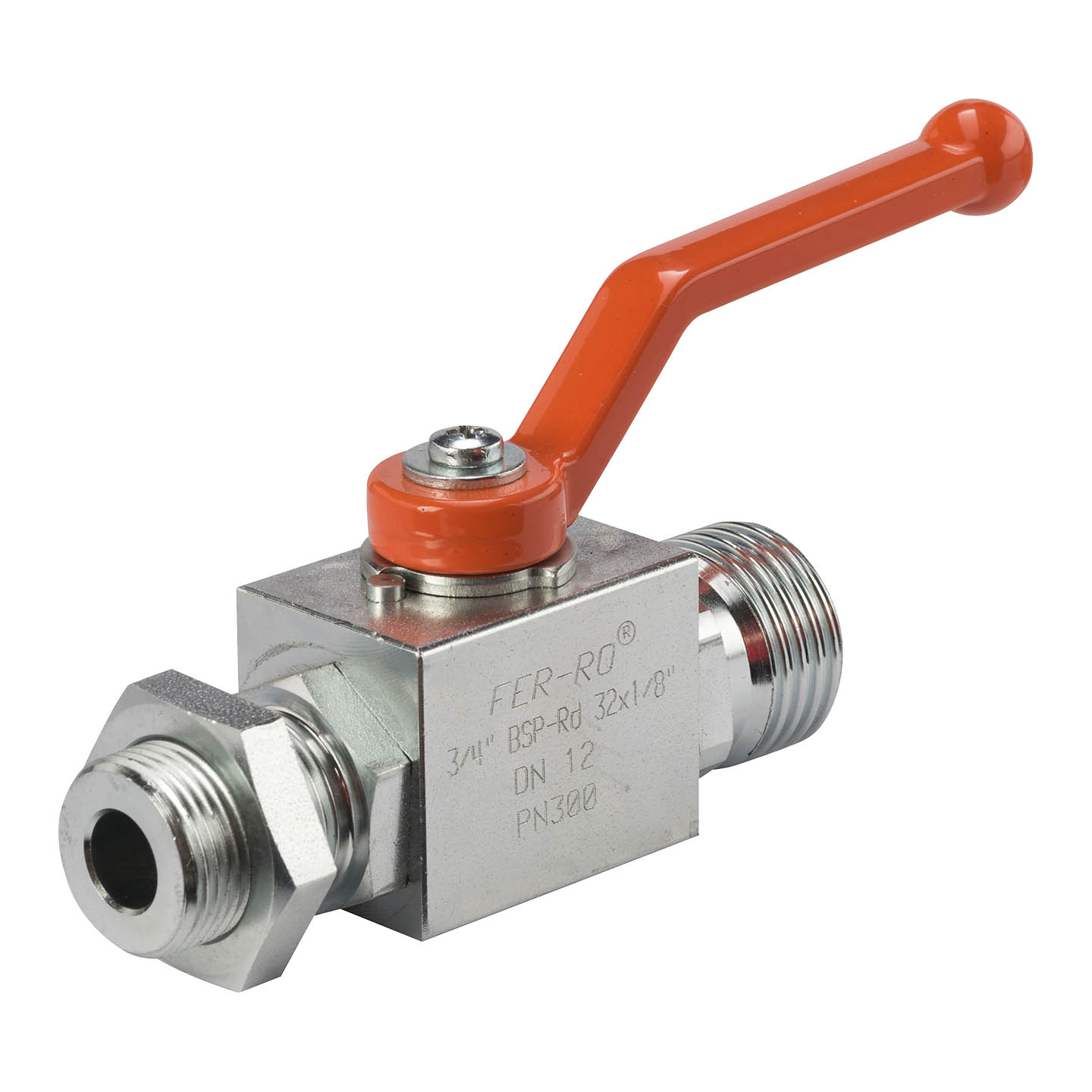

PHOTOS
