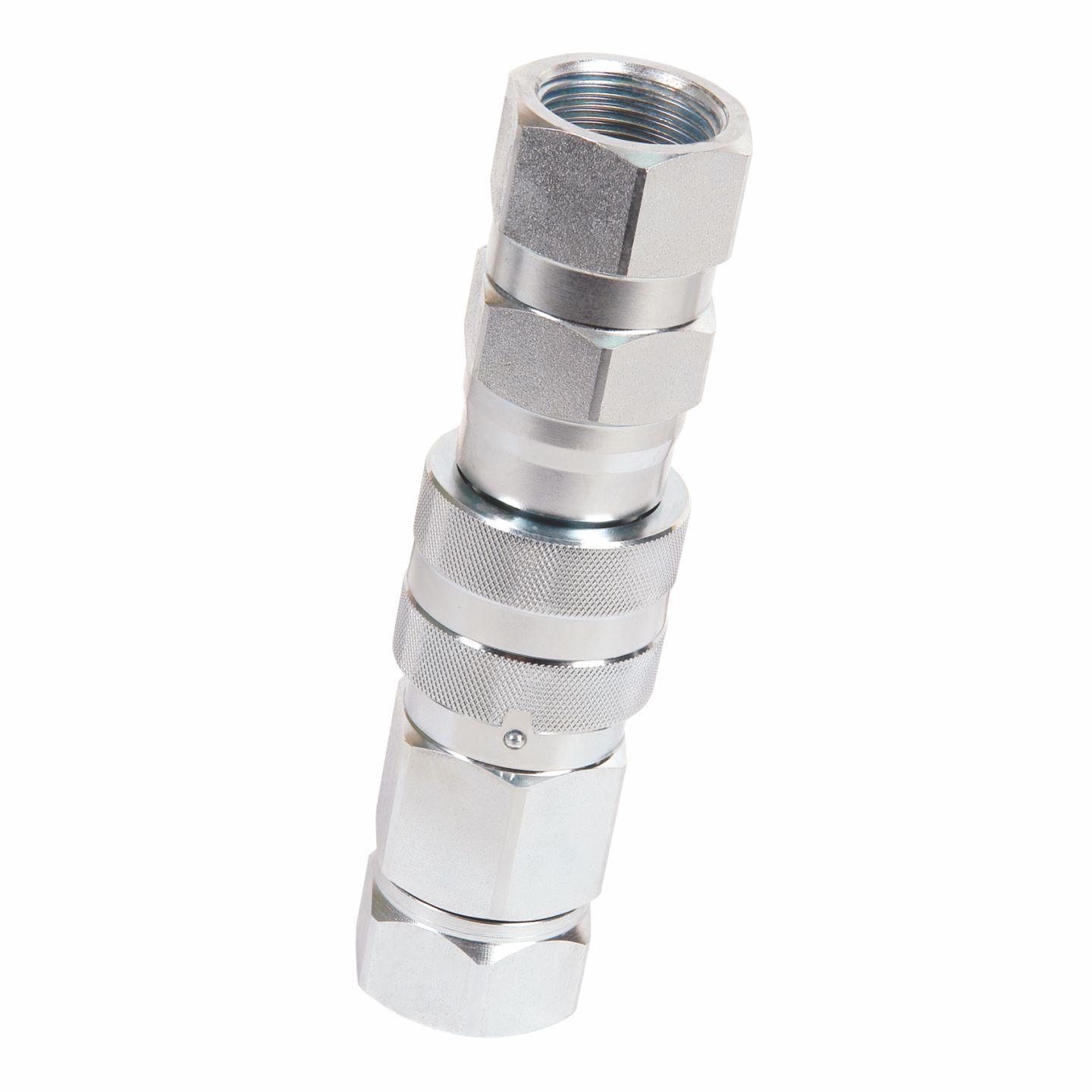

FF Series Hydraulic Flat Face Quick Couplings are specially designed for easy cleaning and preventing the penetration of contemination to the hydraulic circuits.
Male nipples of FF Series are hardened by heat treatment.
Manual sleeve locking mechanism prevents accidental and involuntary connection & disconnection.
The main fields of application for FF Series are environment-sensitive areas and hydraulic tools.
| Interchangeability | ISO 16028 |
| Shut-off System | Flat Valve |
| Material | Carbon Steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Male nipple |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| VITON & High temperature resistant special spring (-30 °C & +225 °C), | |
| Upon Request | Polyurethane (PU) |
| Applications | Construction, production, national defense, aviation, mobile |
| hydraulic, chemical, mining |

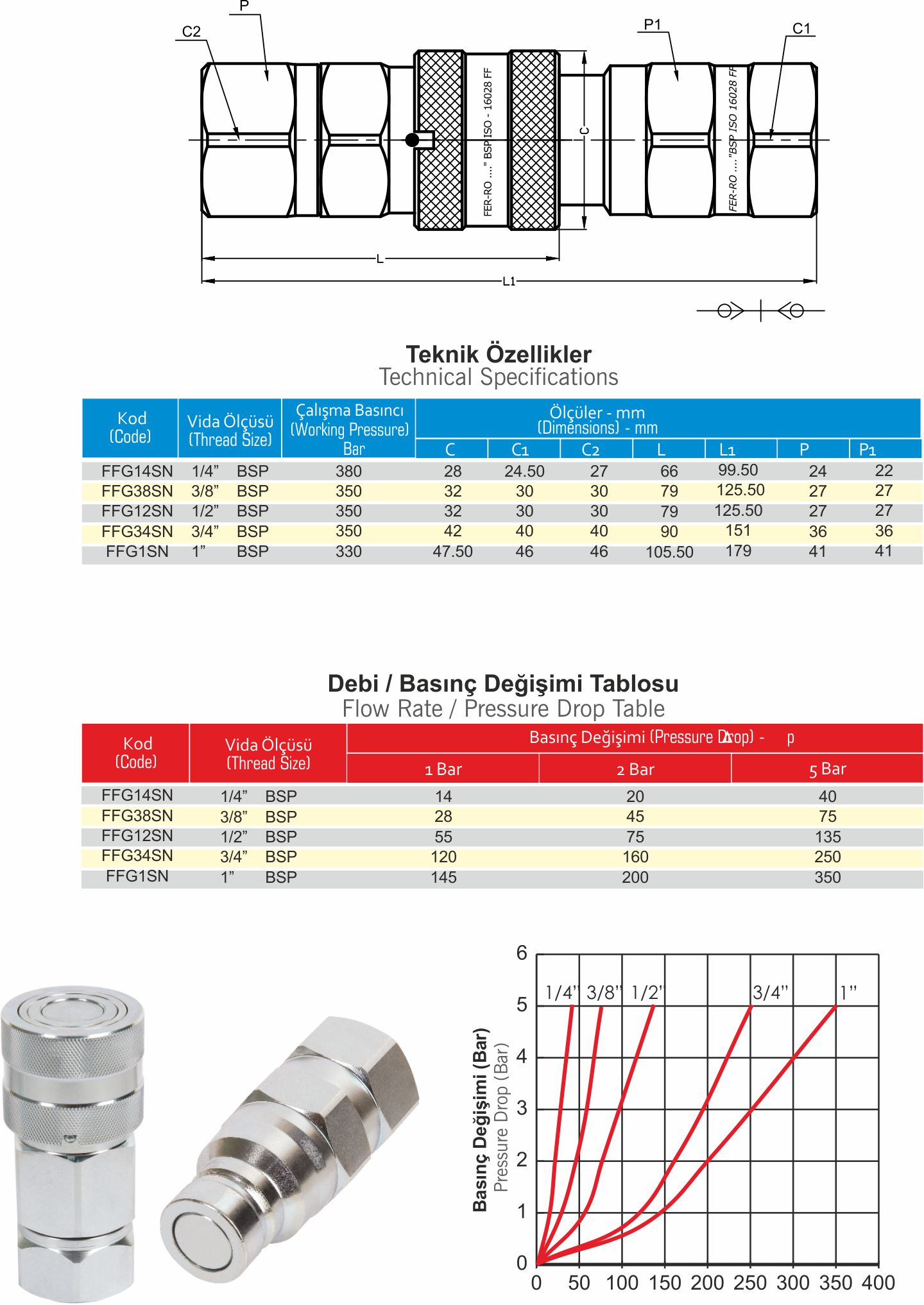

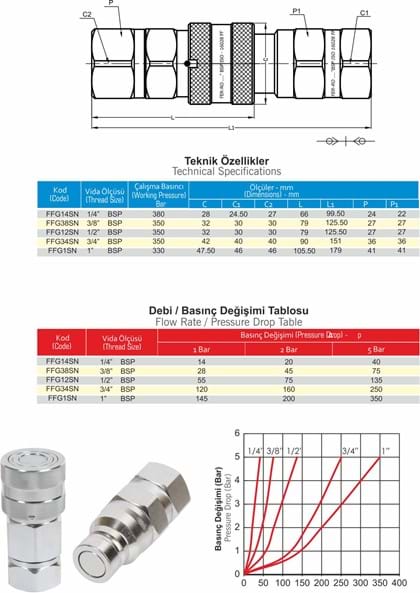

TECHNICAL DATA
