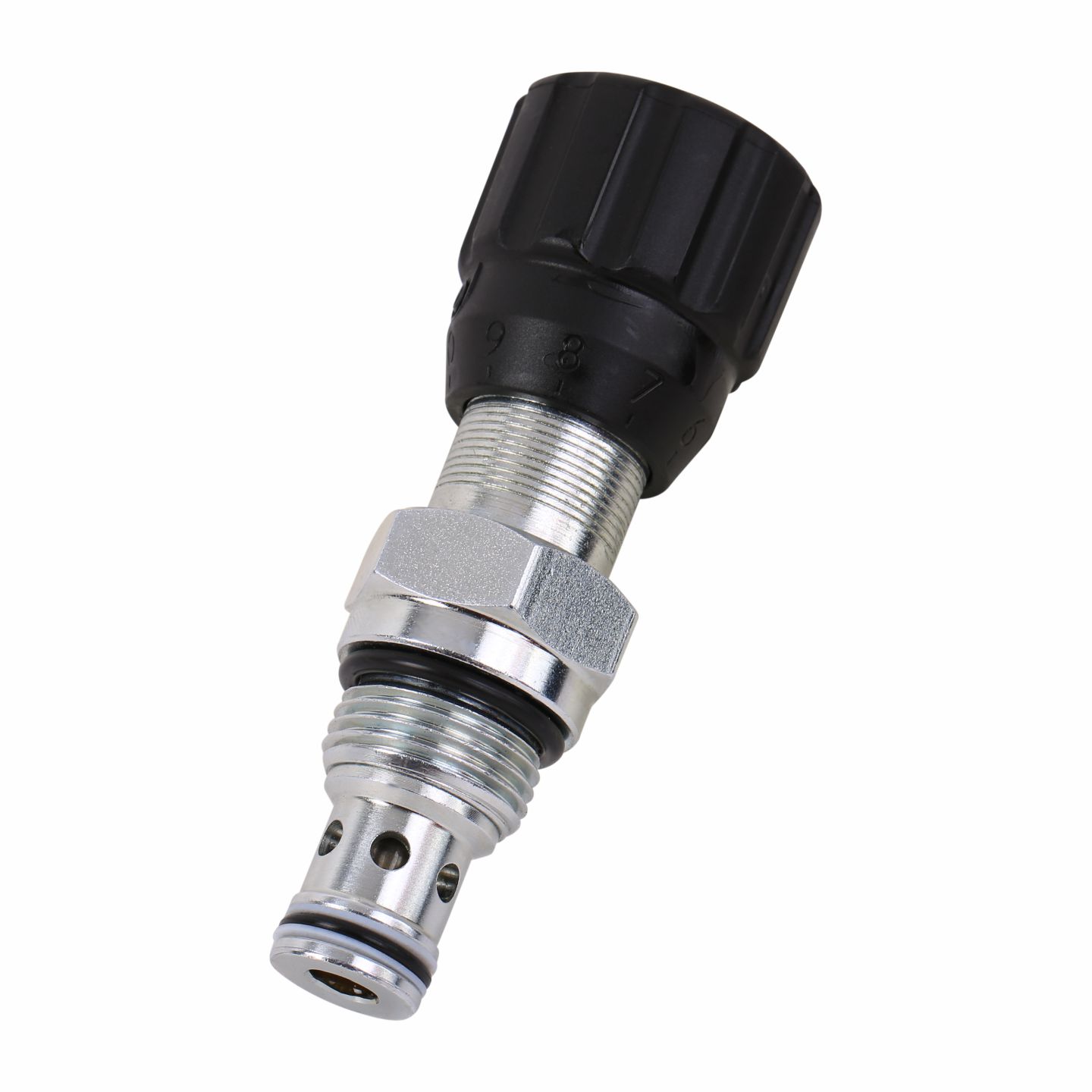

FCCRT SERIES CARTRIDGE TYPE HYDRAULIC FLOW CONTROL VALVES

FCCRT series Cartridge Type Flow Control Valve is a type of valve that allows the speed of the fluid to be adjusted very precisely in both directions. Cartridge type speed adjustment valves there is a adjustment screw on the control cover that locks the valve and prevents the changes caused by vibration. FCCRT series Cartridge Type Flow Control Valves are widely used in all industries, especially in mobile and industrial hydraulic applications and lifting platforms, providing precise protection and control of the power of the fluid and providing flawless speed adjustment.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Applications General hydraulic applications

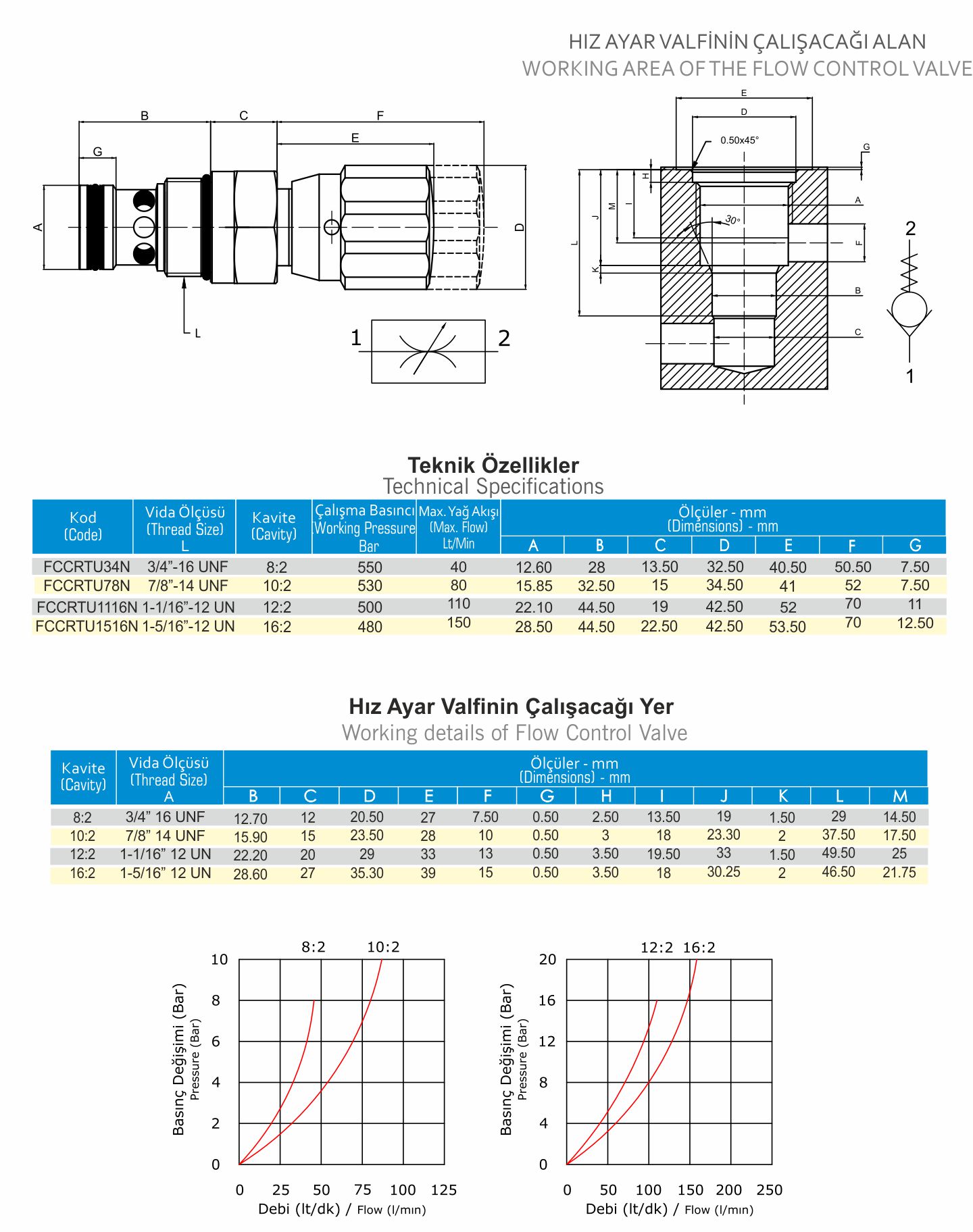

TECHNICAL DATA
PHOTOS
