BT Series Hydraulic Ball Shut-Off Type Quick Couplings are used in many industrial fields.
Male nipples of BT Series Hydraulic Quick Couplings are hardened by heat treatment.
| Shut-off System | Ball Shut-Off Valve |
| Material | Carbon Steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Male Nipple |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | VITON & High temperature resistant special spring (-30 °C & +225 °C) |
| Applications | General industrrial applications |

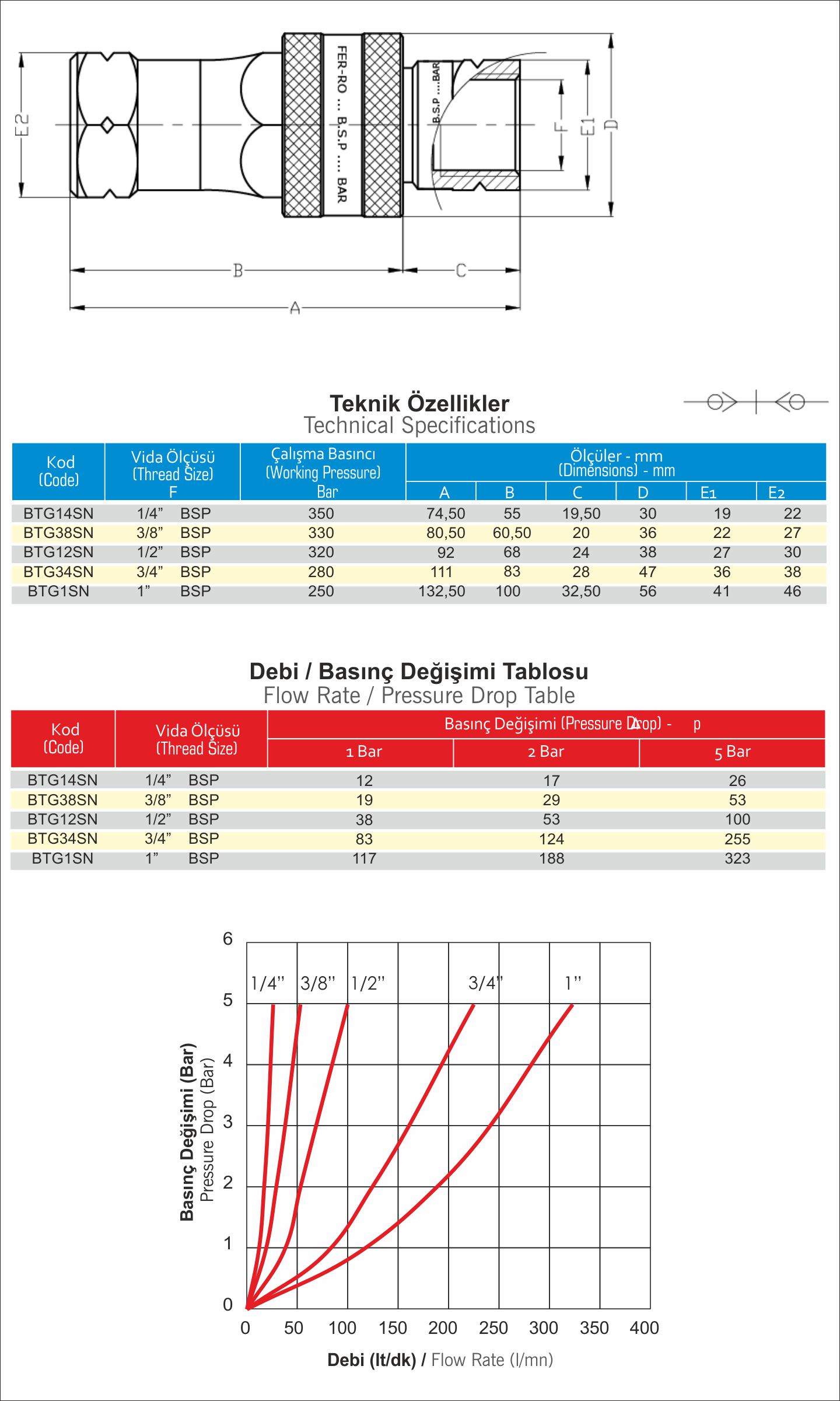

TECHNICAL DATA

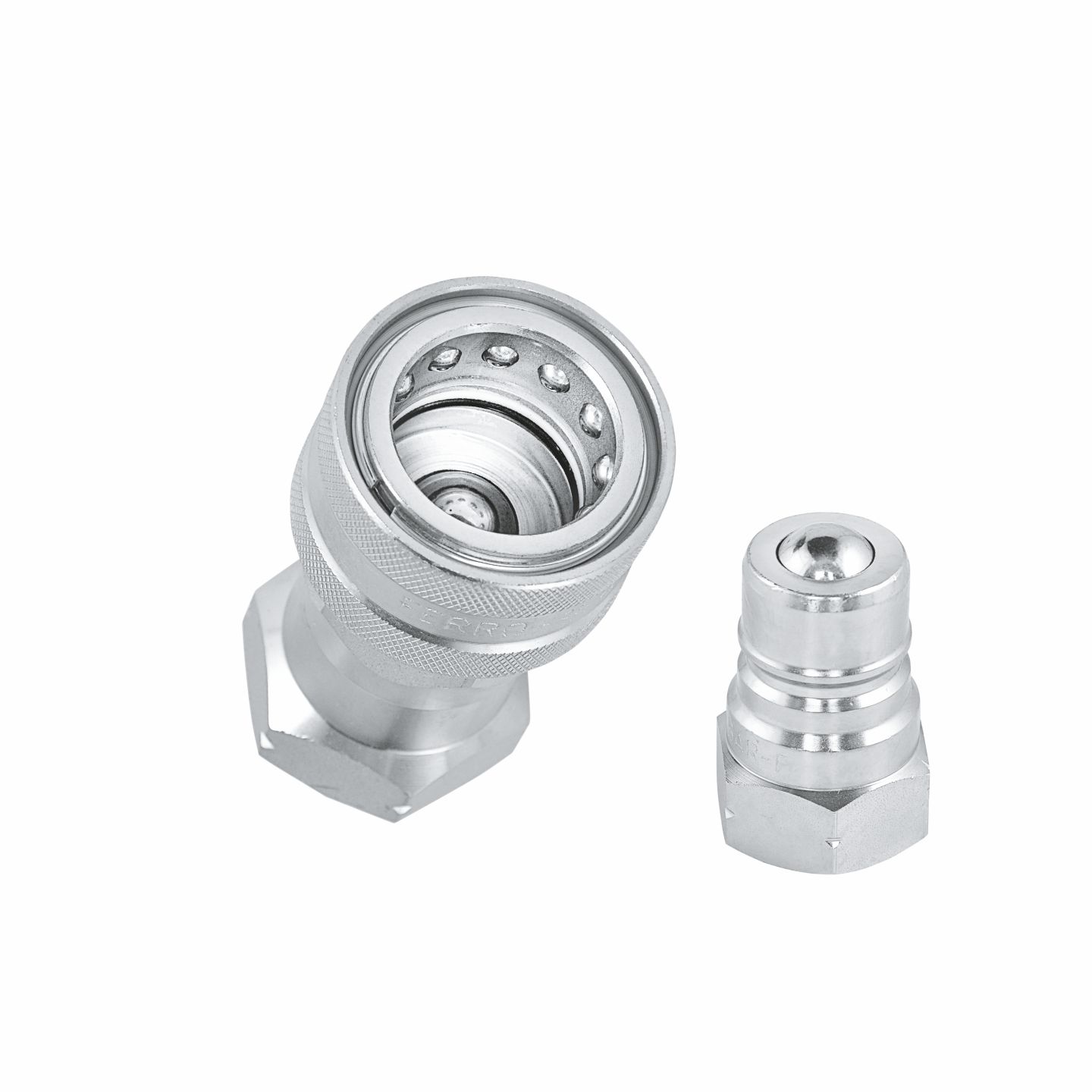

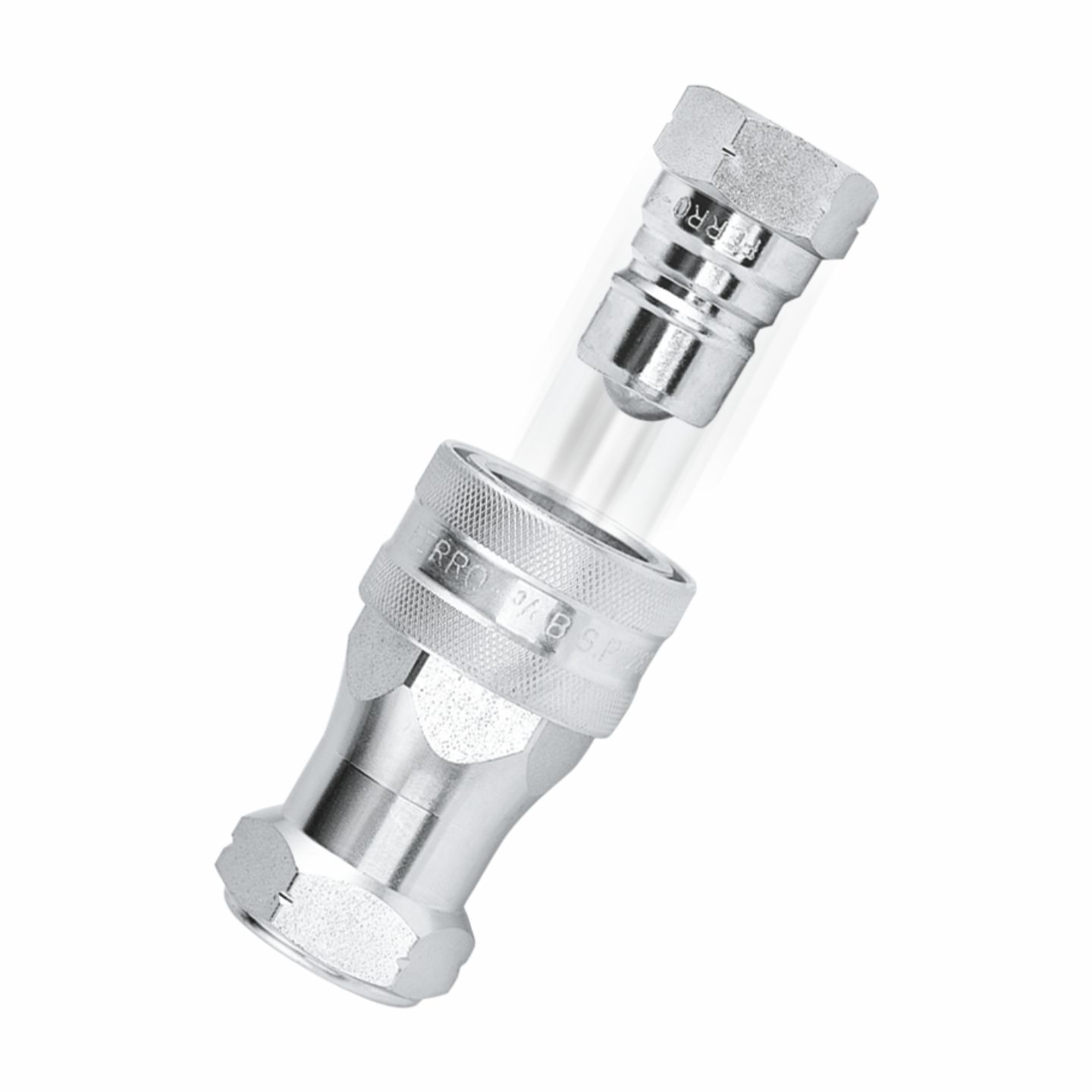

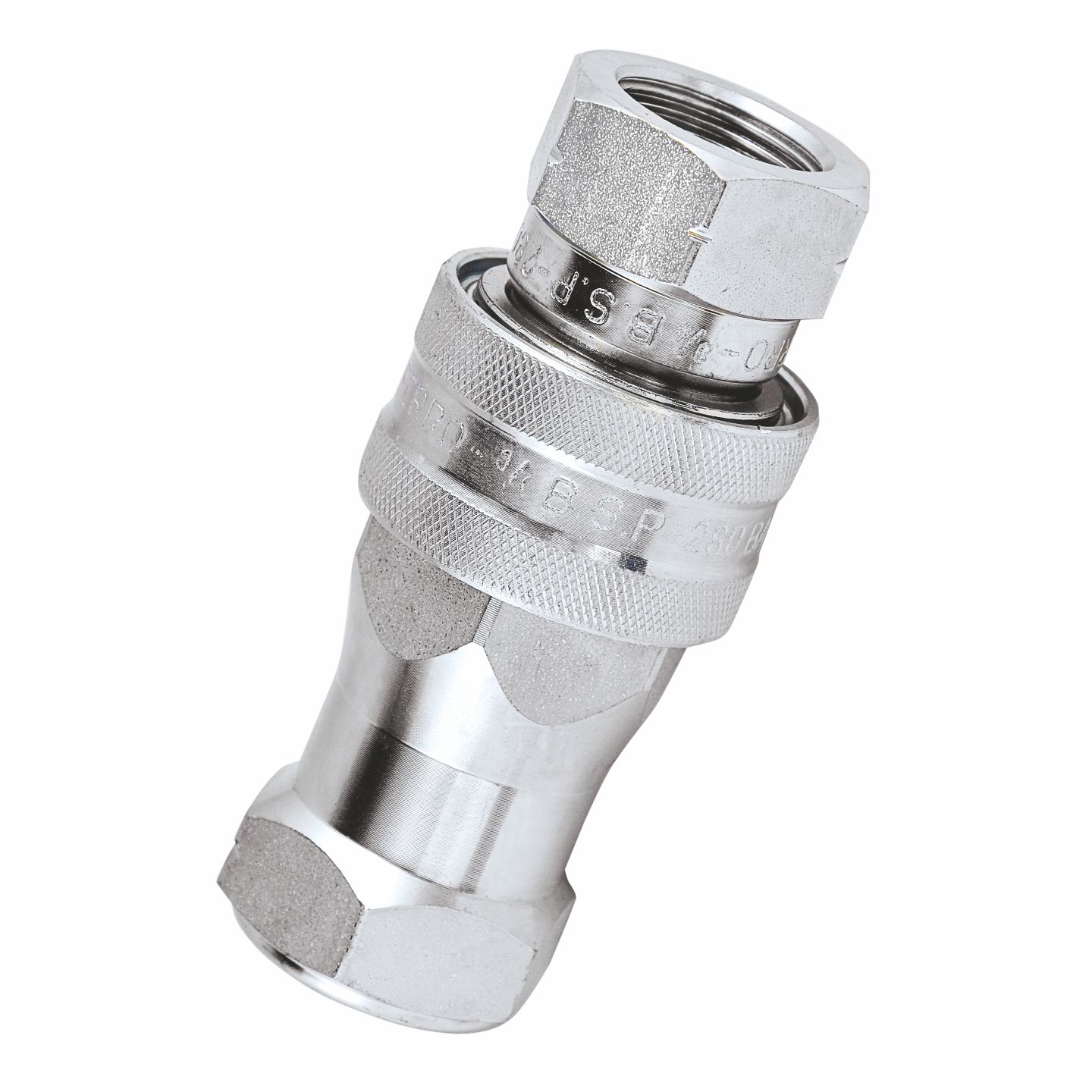

PHOTOS
