DCFC Series flange-connected Double Pilot Operated Check Valves help to lock double acting cylinders, lock the piston under pressure in case of explosion in the pipe or line, or restrict the movement of the piston. Flange-connected Double Pilot Operated Check Valves reduce the maximum risk by making direct connection on the piston. Flange-connected Double Pilot Operated Check valves are widely used in mobile and other industries.
| Material | Aluminium |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Heat Treatment | Internal parts |
| Applications | General Hydraulic Applications |

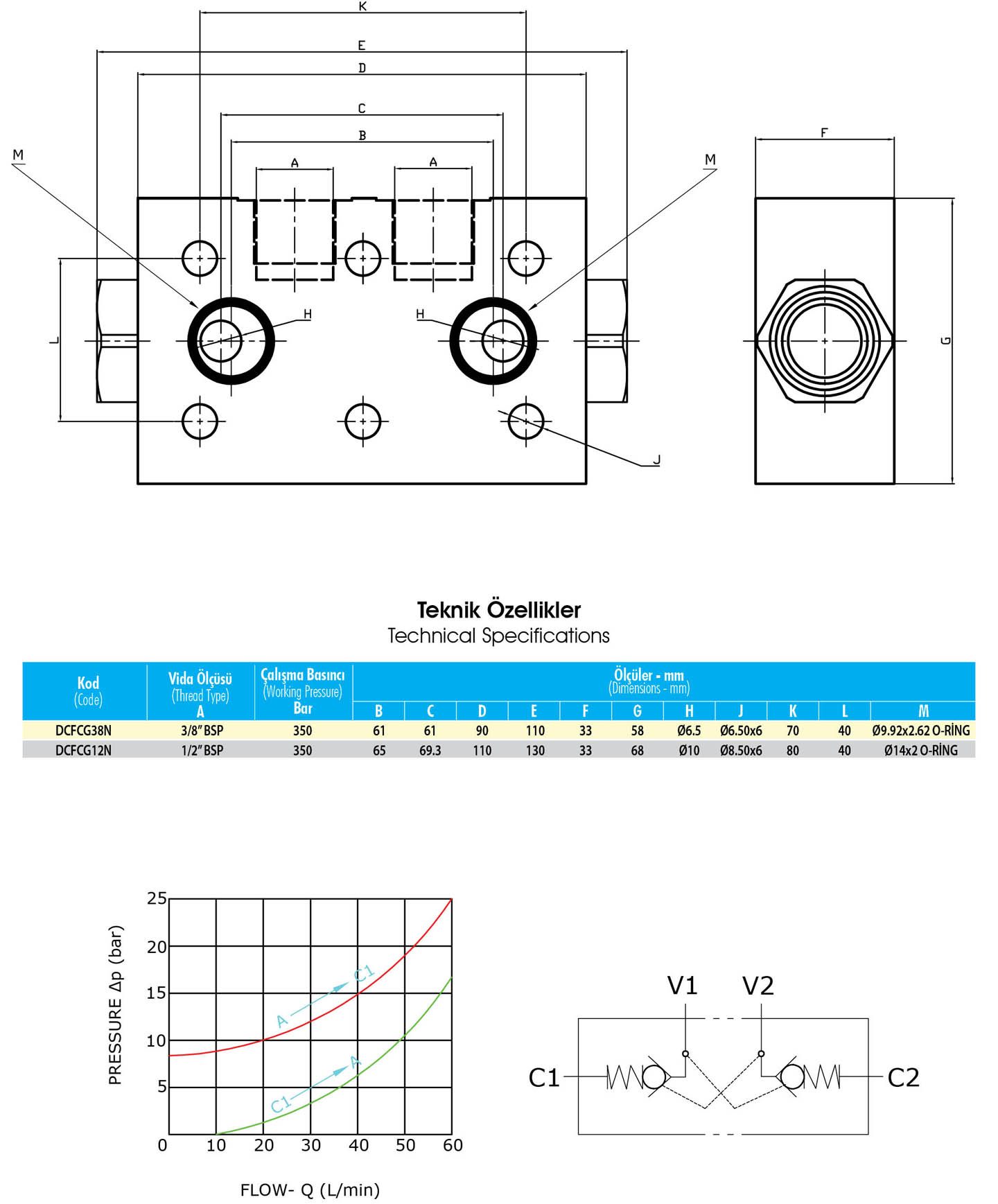

TECHNICAL DATA

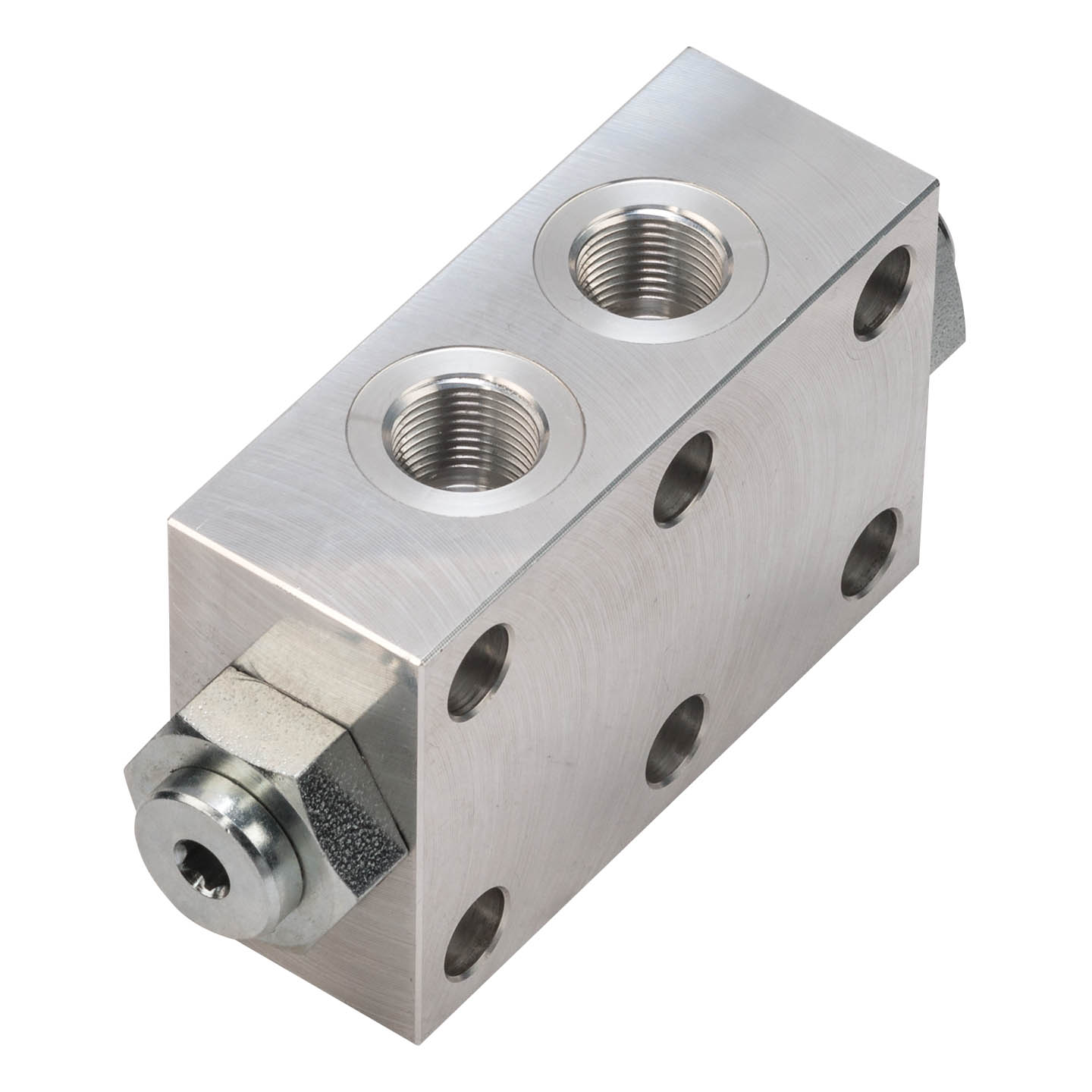

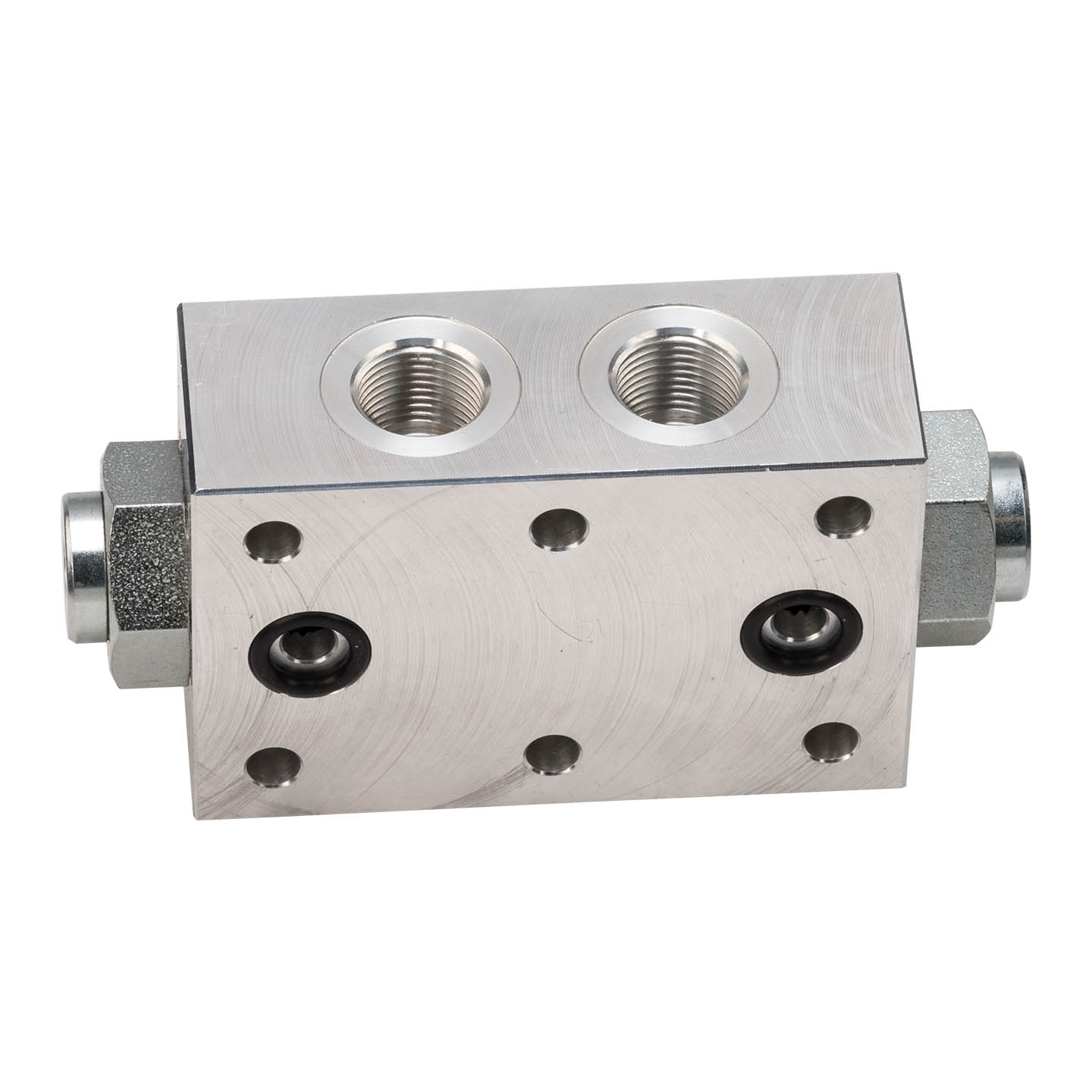

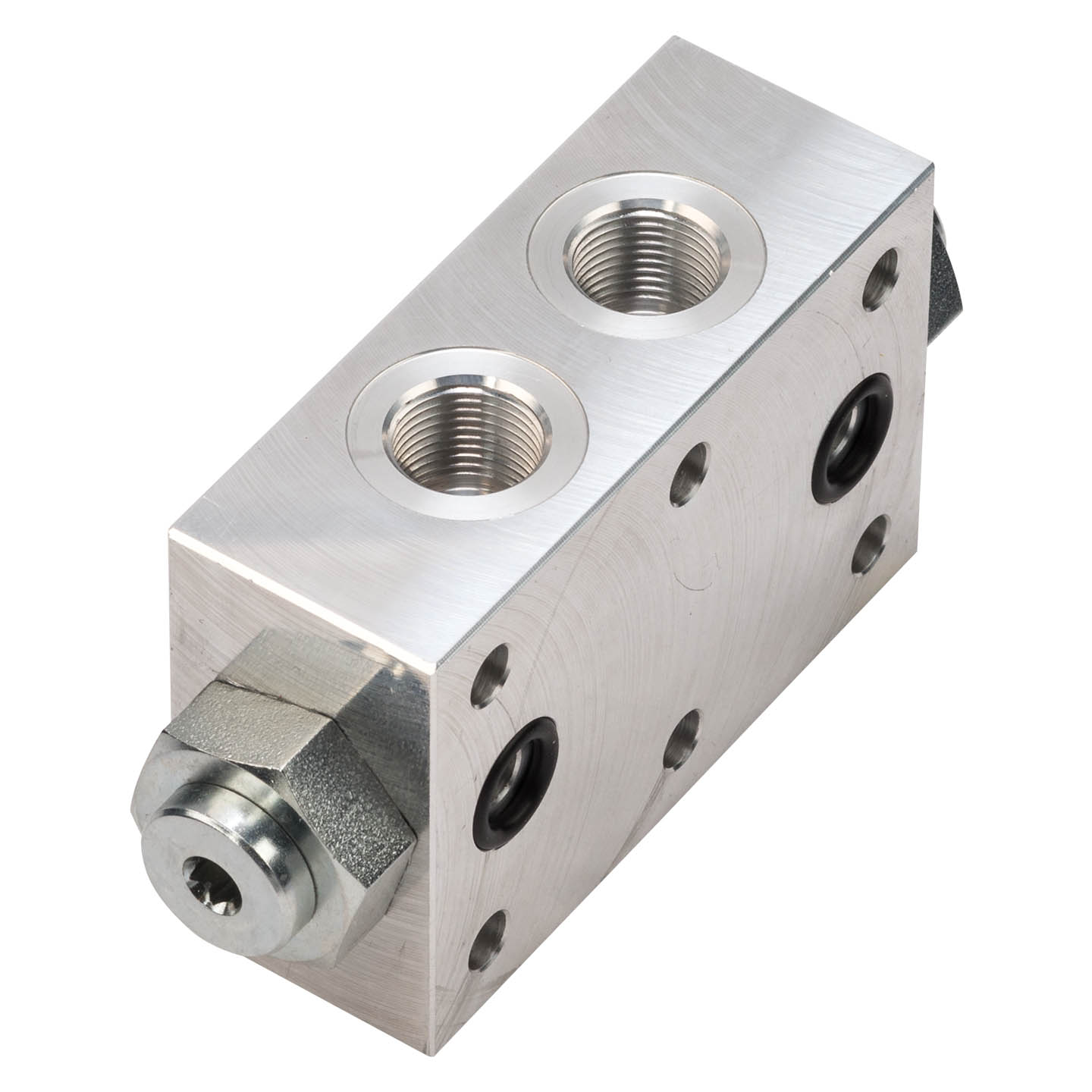

PHOTOS
