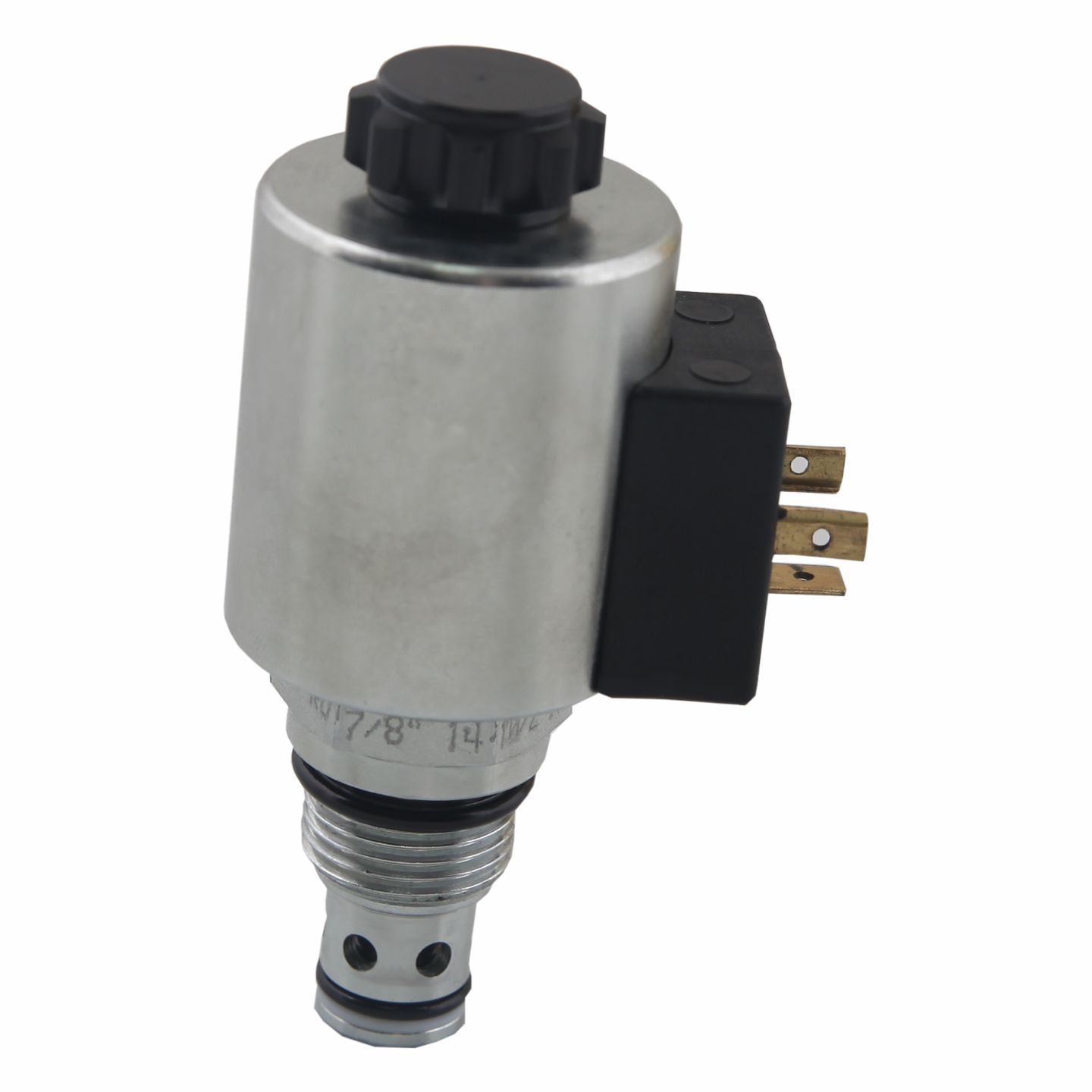

SPV SERIES 2/2 SELENOID POPET VALVES CARTRIDGE VALVES WITH COIL

SPV series 2/2 Solenoid Popet Valves are used as circuit elements in industrial hydraulic industry. This Valve is in a position to prevent the passage of pressure from the pump in the hydraulic system. When the electric coil installed on it is given (12V-24V-220v), it creates a magnetic field and moves the pin inside the valve to prevent the pressure coming from the hydraulic pump by turning the system on/off. When the magnetic field (electricity) is cut, the system is turned on/off again.



Material  Aluminium
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

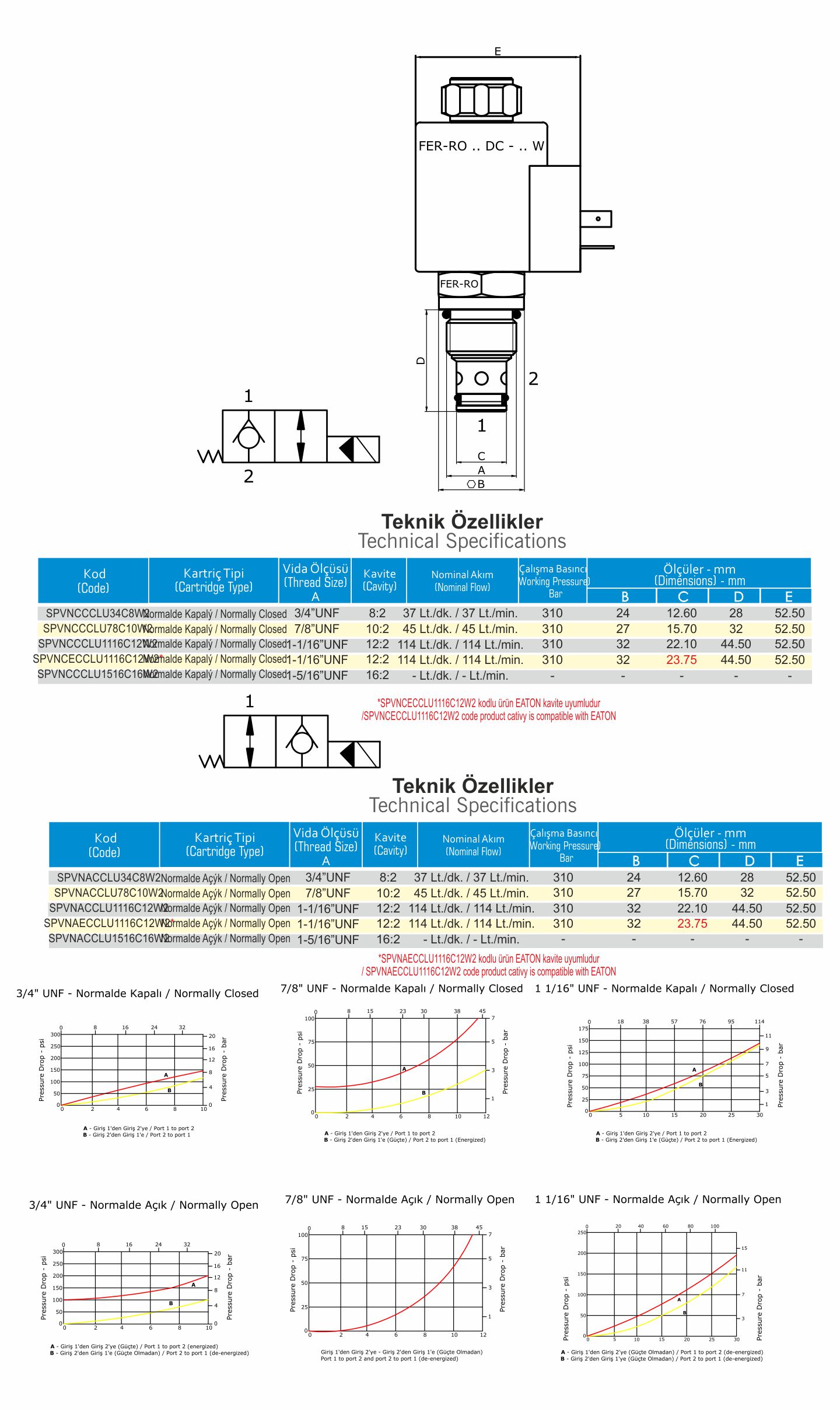

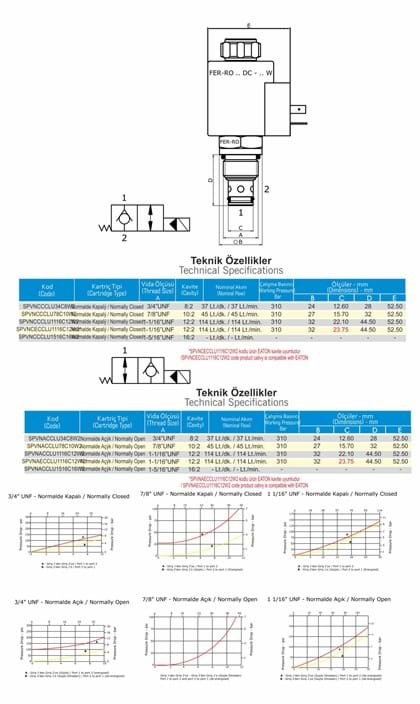

TECHNICAL DATA
PHOTOS
