FLD SERIES HYDRAULIC SPLITTER AND CONNECTIVE VALVES

FLD series Flow Divider and Connective valves allow a hydraulic circuit to operate at the same speeds by sending the same fluid from the same pump to two separate cylinders or motors. They are designed as A – B – C Series to slow down or speed up the speeds of cylinders or motors.



Material  Aluminium
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

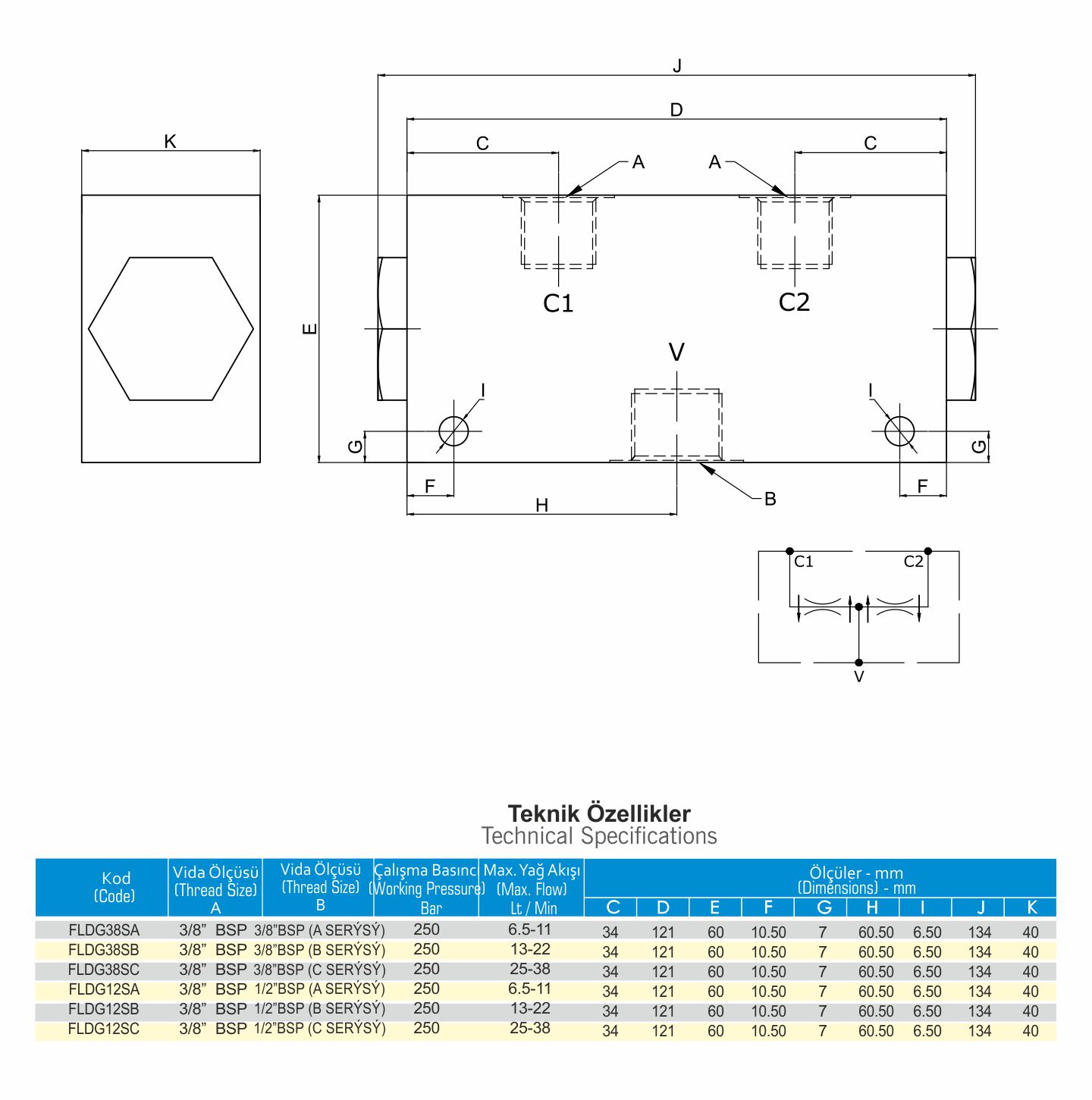

TECHNICAL DATA

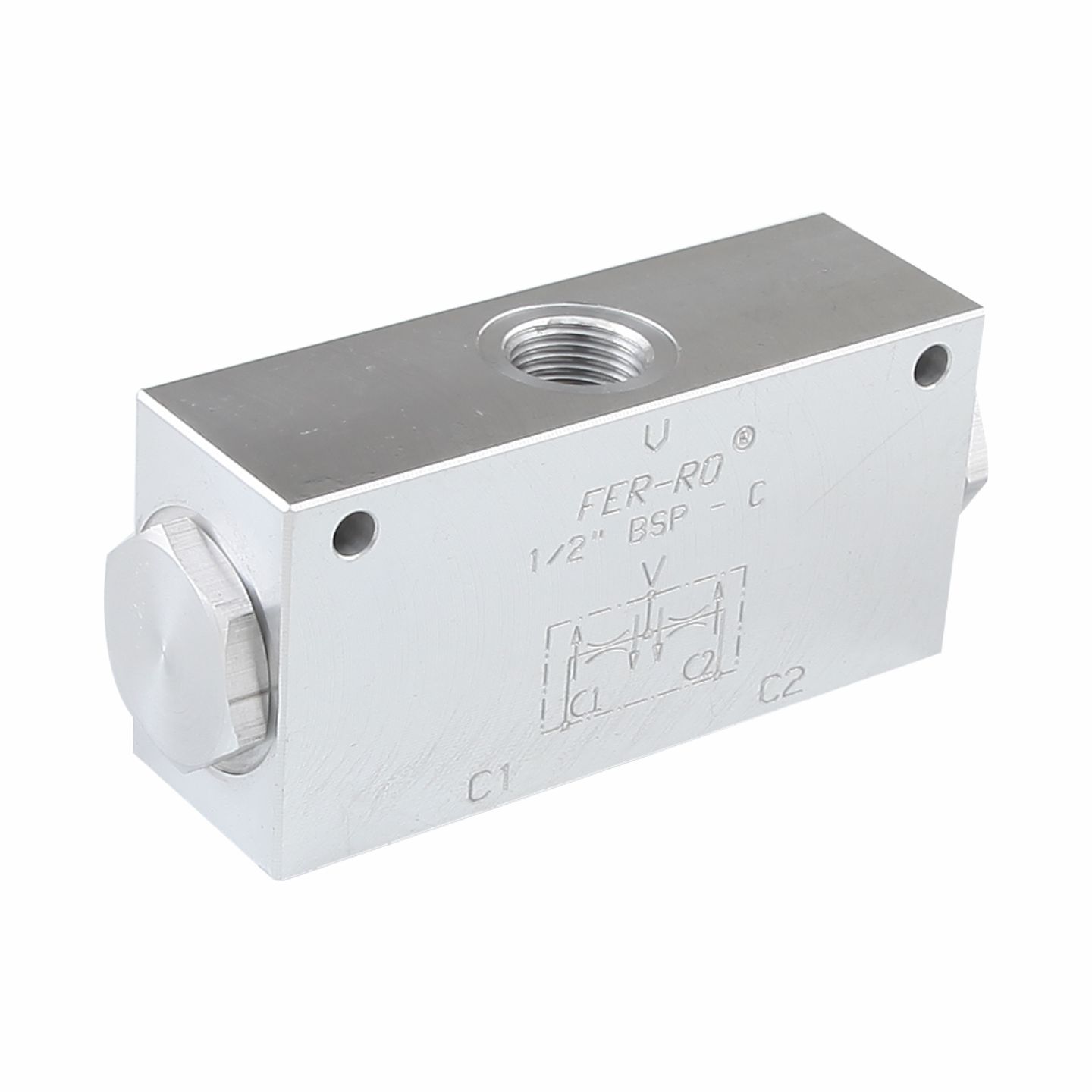

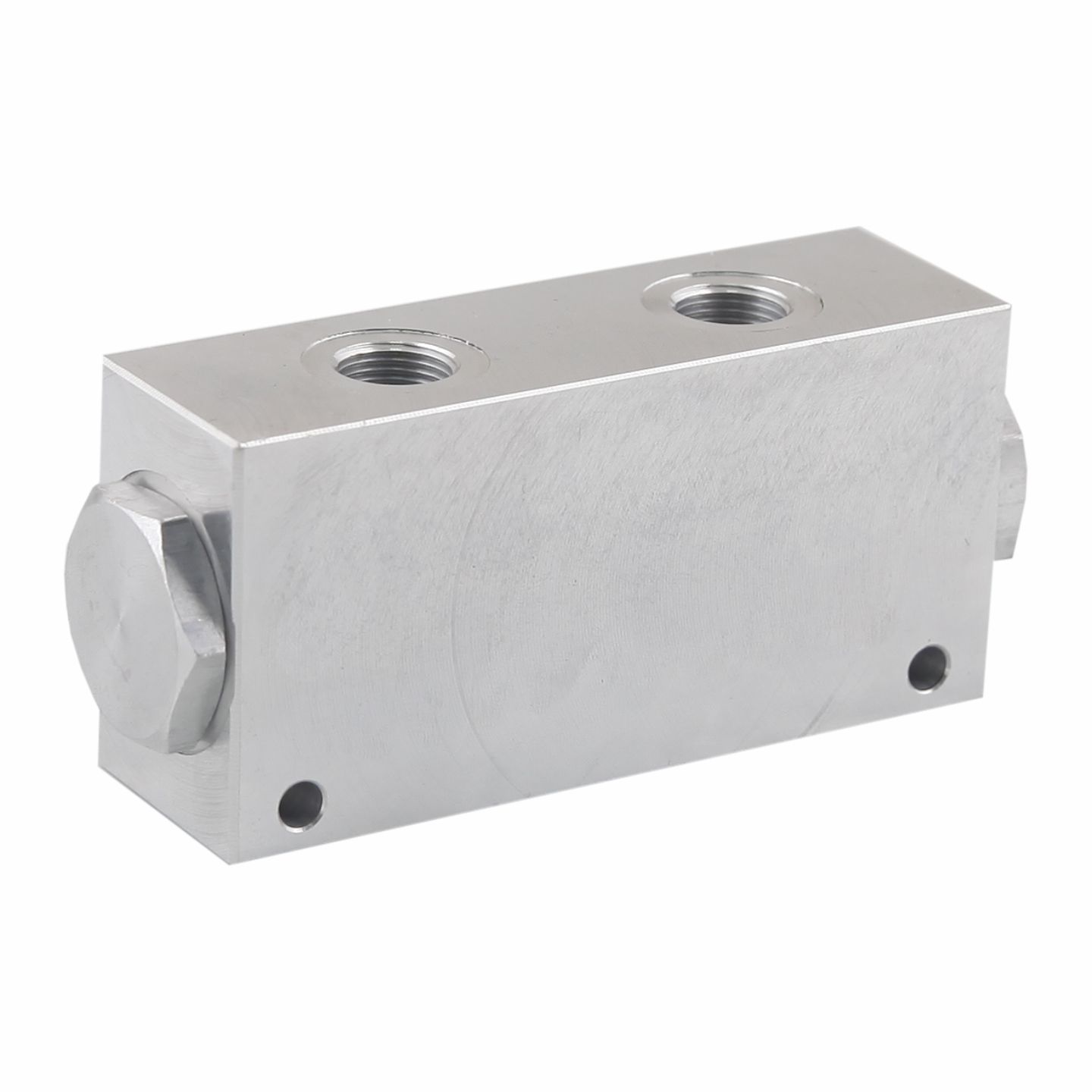

PHOTOS
