The built-in check valve provides direct contact with the fluid, when TC Series Hydraulic Test Couplings are connected.
The screw-in design allows test couplings to be connected even when the system is in operation and under high
pressure.
Internal threaded metal dust cap protects the Test Coupling from contamination and damage.
| Shut-off System | Poppet Valve |
| Material | Carbon Steel |
| Thread Size | BSP, UNF & Metric |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | 30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Applications | Pressure control & testing, lubrication |

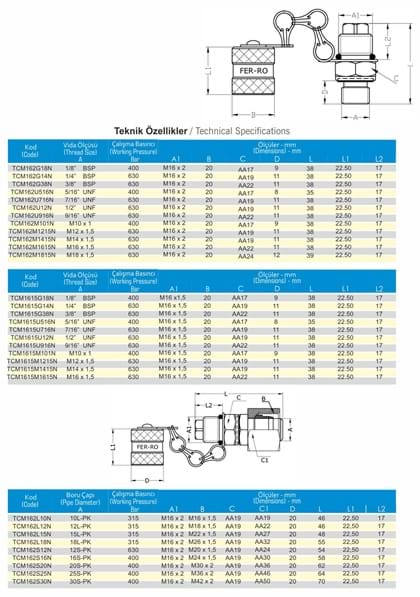

TECHNICAL DATA
PHOTOS
