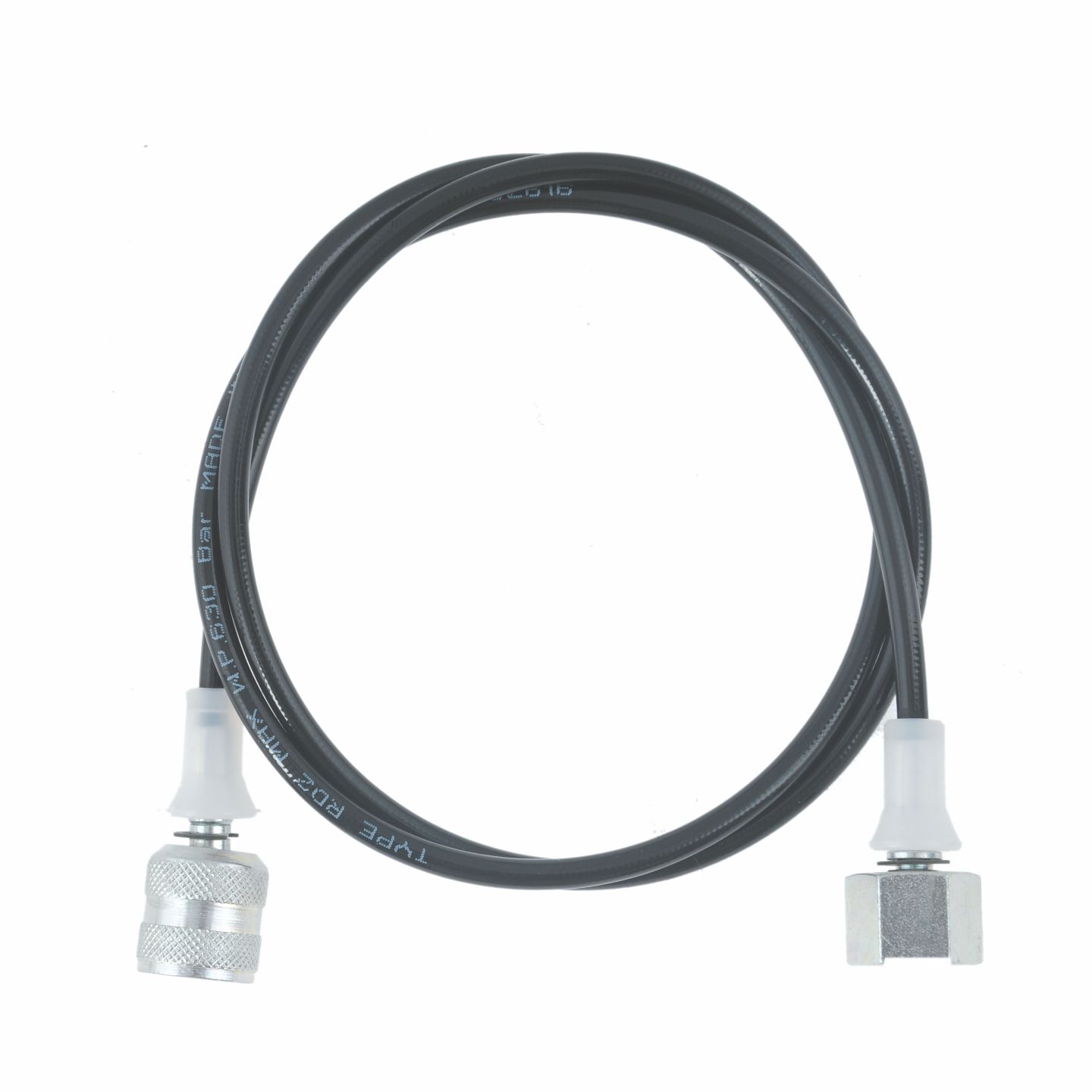

TH Series Hydraulic Test Hoses can be installed at any point of the hydraulic system where pressure is to be monitored.
TH Series Test Hoses provide perfect solutions and remote control for hard-to-reach locations and simplify the control.
The micro-bore hose is extremely flexible that it can be installed easily.
The screw-in design allows test hoses to be connected directly with the fluid even when the system is in operation and under high pressure.
| Hose | Dn2 5 - 2,2 Kevlar |
| Working Pressure | 630 Bar |
| Fittings Material | Carbon Steel |
| Thread Size | M16x2 - 1/4" BSP / M16X2 - M16X2 |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Connection Under Pressure | Allowed (0-100 Bar) |
| Disconnection Under Pressure | Allowed (0-100 Bar) |
| Applications | Pressure control & testing, lubrication |

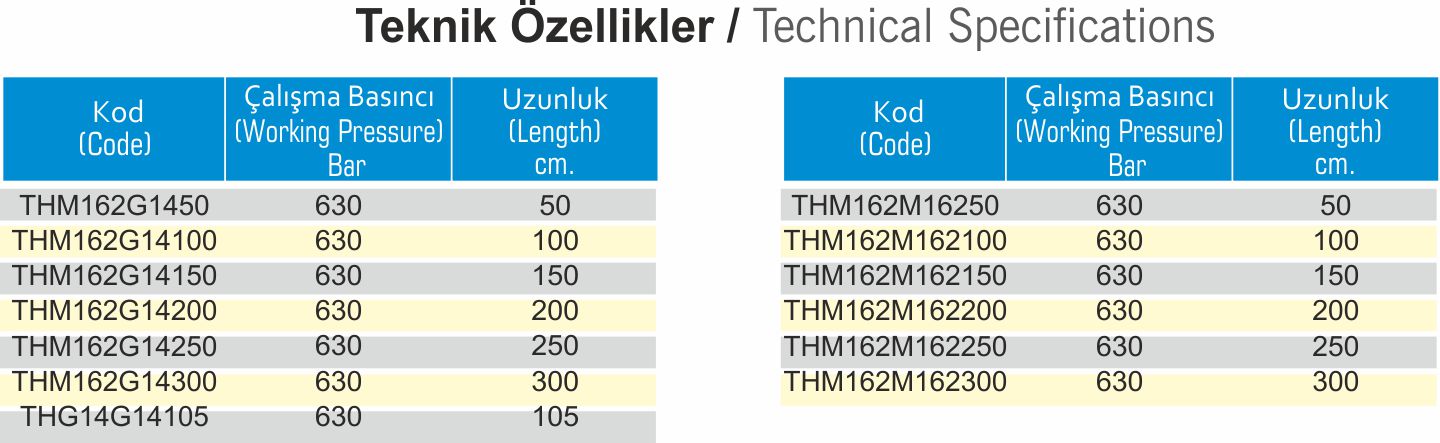

TECHNICAL DATA
