BV3PNA Series Double Acting Pneumatic Actuator Hydraulic 3-Way Stainless Steel Ball Valves are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV3PNA Series Double Acting Pneumatic Actuator Hydraulic 3-Way Stainless Steel Ball Valves can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated. Ball Valves are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids. BV3PNA Series Double Acting Pneumatic Actuator Hydraulic 3-Way Stainless Steel Ball Valves provides the movement with pneumatic actuator instead of handle motion
| Body Material | Stainless Steel (AISI 316-L) |
| Ball Material | Stainless Steel (AISI 316-L) |
| Thread Size | BSP, NPT |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON |
| Applications | Excavators, plastic injection mould machines, |
| chemical processing plants, cranes, tankers, | |
| dump trucks and general hydraulic applications |

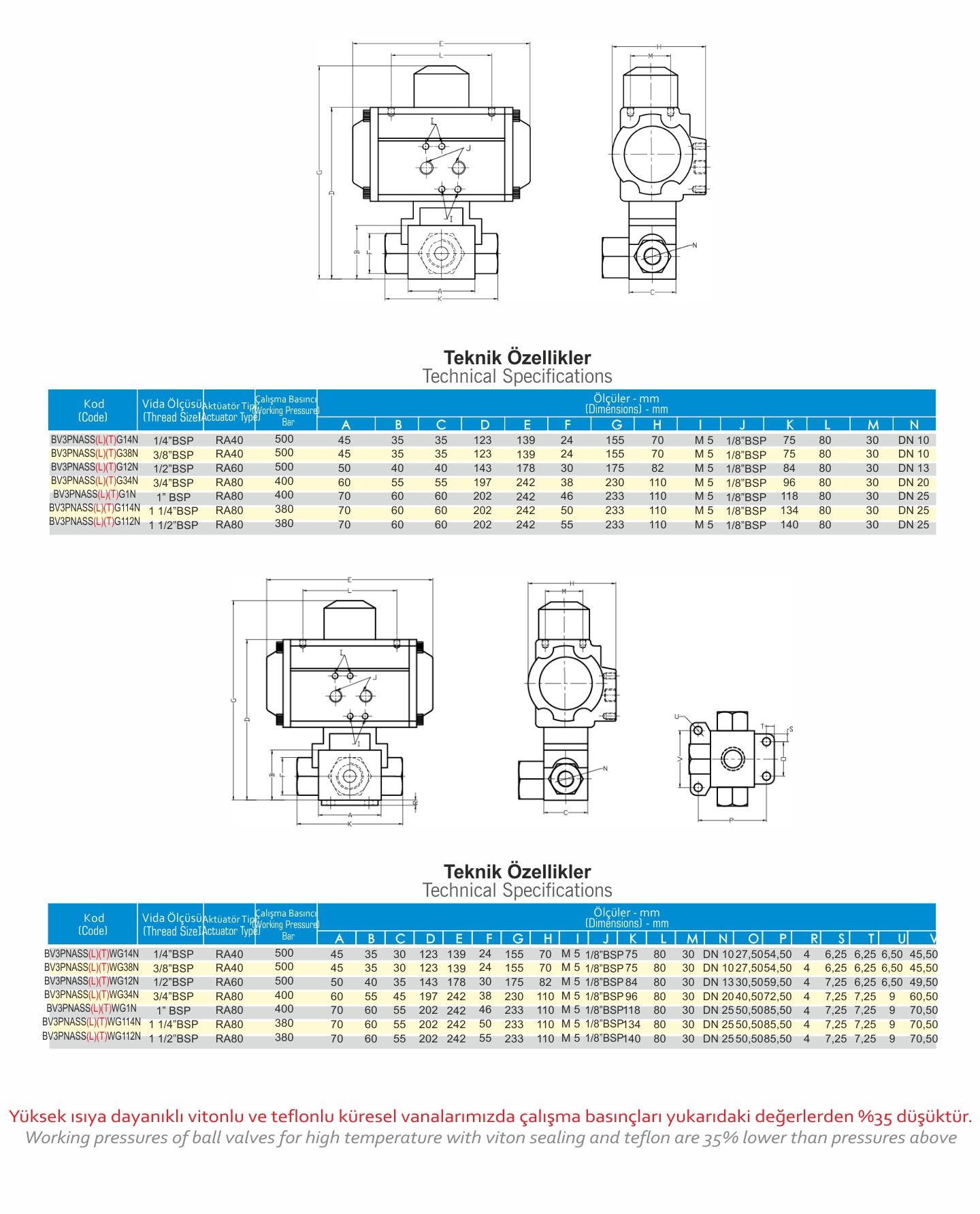

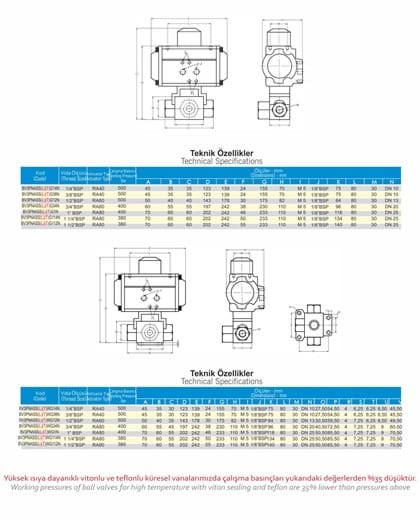

TECHNICAL DATA

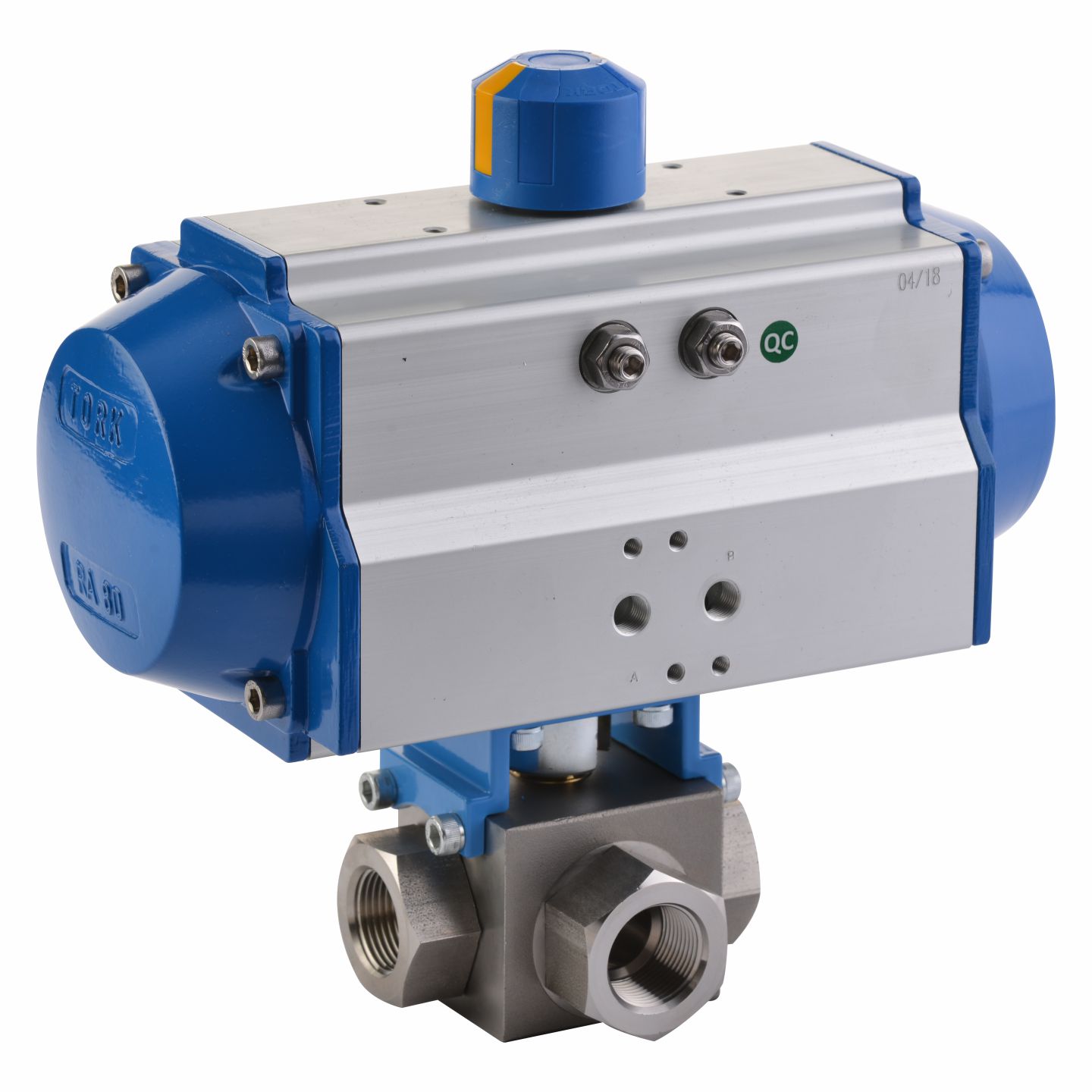

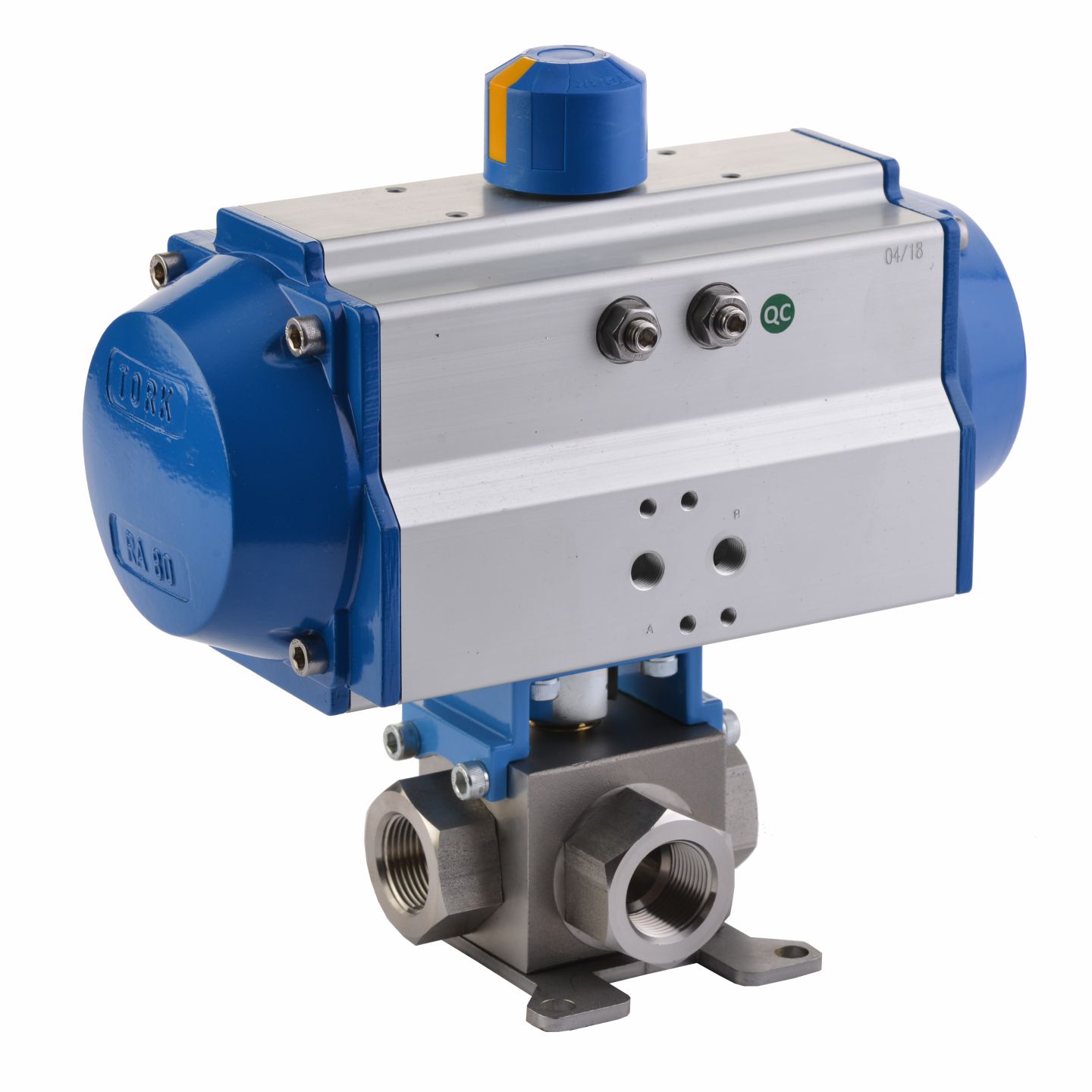

PHOTOS
