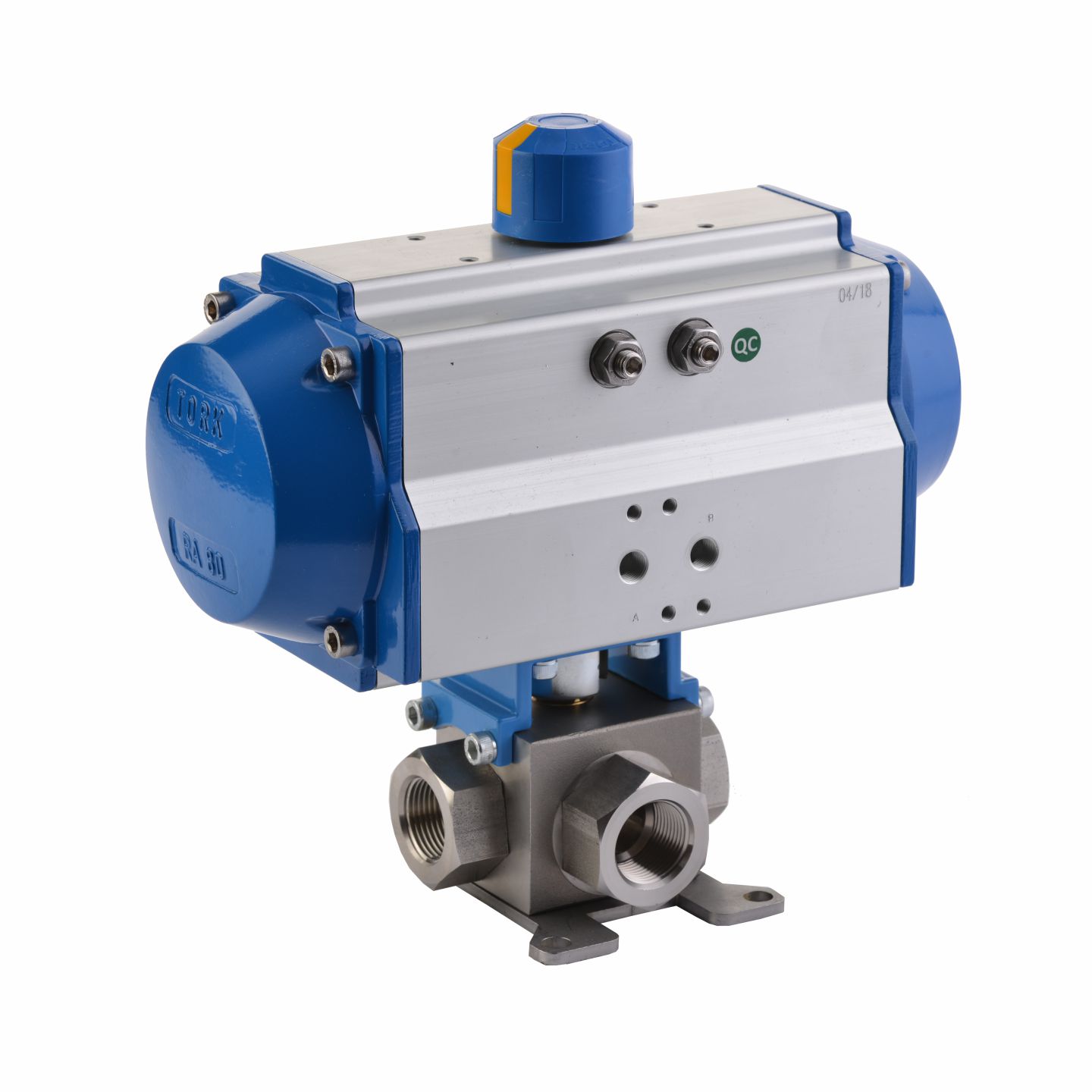

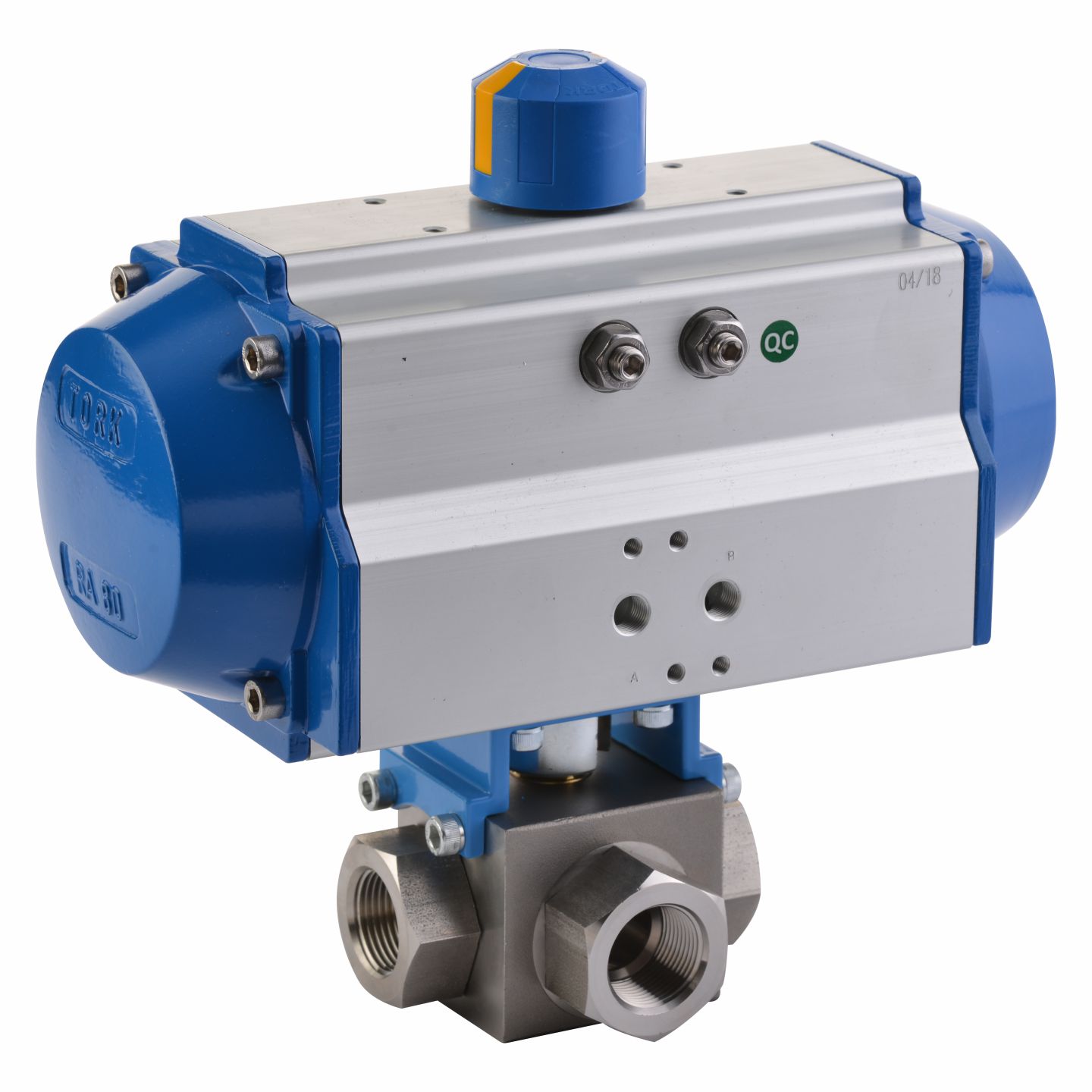

BV3PNA SERIES DOUBLE ACTING PNEUMATIC ACTUATOR HYDRAULIC 3-WAY STAINLESS STEEL BALL VALVES (SPECIAL FOR WATER AND CHEMICAL FLUID FLOW)

BV3PNA Series Double Acting Pneumatic Actuator Hydraulic 3-Way Stainless Steel Ball Valves ( Special for water and chemical fluid flow) are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV3PNA Series Double Acting Pneumatic Actuator Hydraulic 3-Way Stainless Steel Ball Valves ( Special for water and chemical fluid flow) can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated. Ball Valves are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids. BV3PNA Series Double Acting Pneumatic Actuator Hydraulic 3-Way Stainless Steel Ball Valves ( Special for water and chemical fluid flow) provides the movement with pneumatic actuator instead of handle motion



Body Material Stainless Steel (AISI 316-L)
Ball Material  Stainless Steel (AISI 316-L)
Thread Size BSP, NPT
Ball Seats Delrin (POM)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request VITON
Applications Excavators, plastic injection mould machines,
  chemical processing plants, cranes, tankers,
  dump trucks and general hydraulic applications
TECHNICAL DATA
PHOTOS
