QCBRFFMP Series Industrial Multi Purpose Quick Couplings are made of brass material and allow the pass of water and other many kind of chemical liquids.
| Material | Brass |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Hose Connection | Hose Couplers |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | VITON, EPDM ( For steam applications), |
| Polyurethane (PU), Silicone (MVQ) | |
| Applications | Marine, food, pharmacy, medical, chemical, irrigation, |
| paper, paint, textile, gas and aviation |

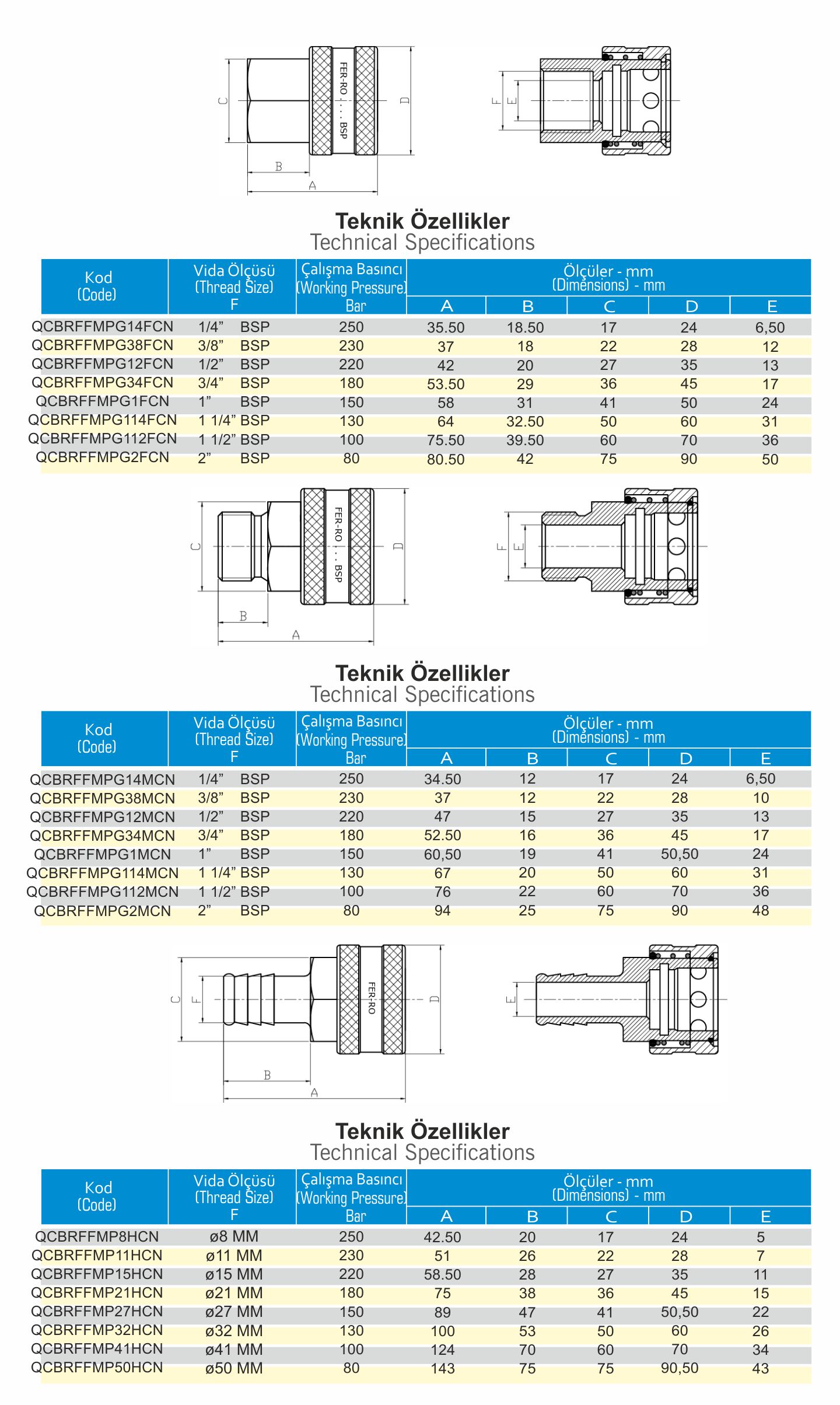

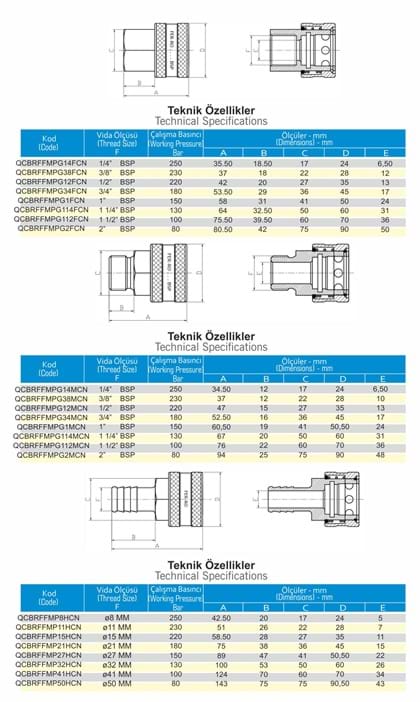

TECHNICAL DATA

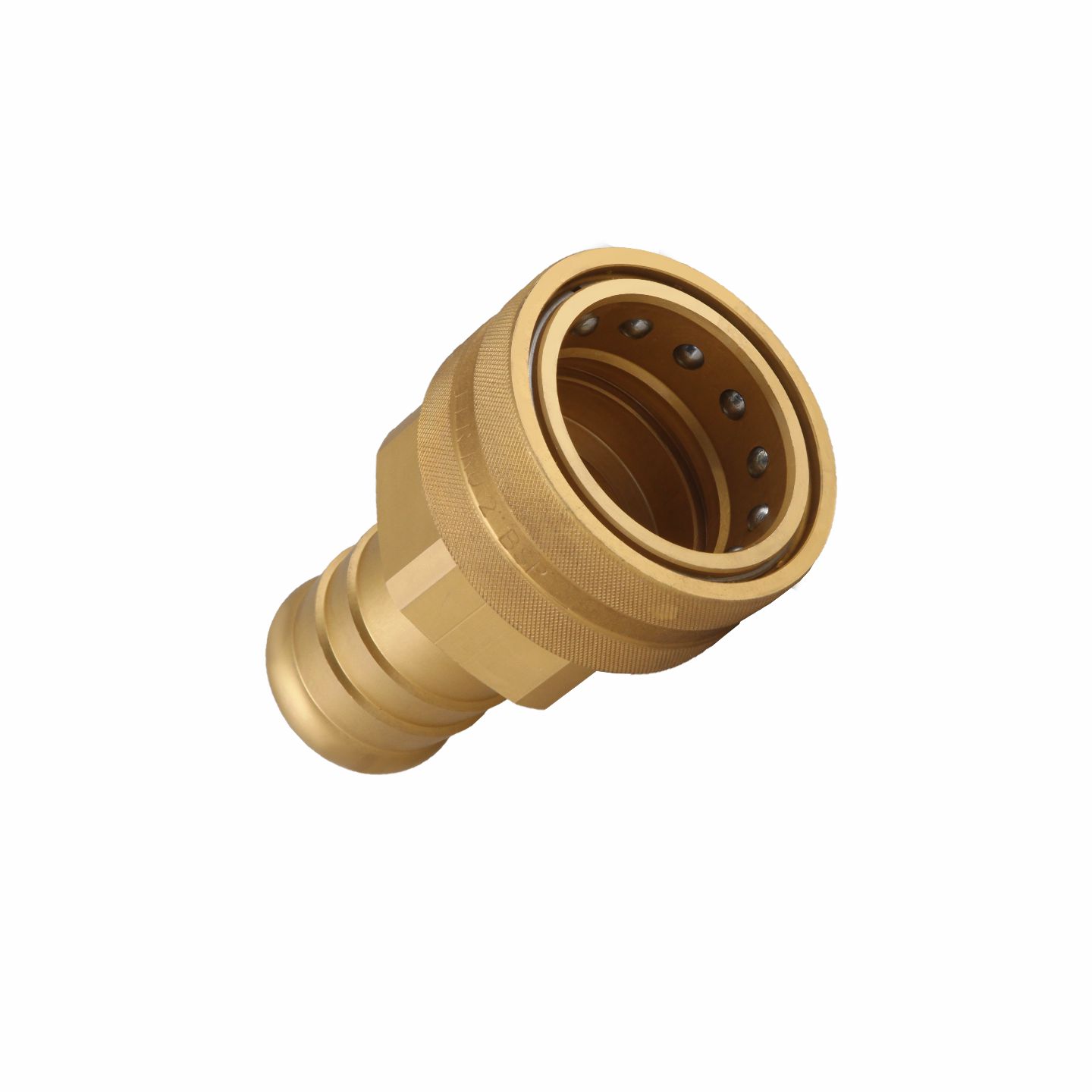

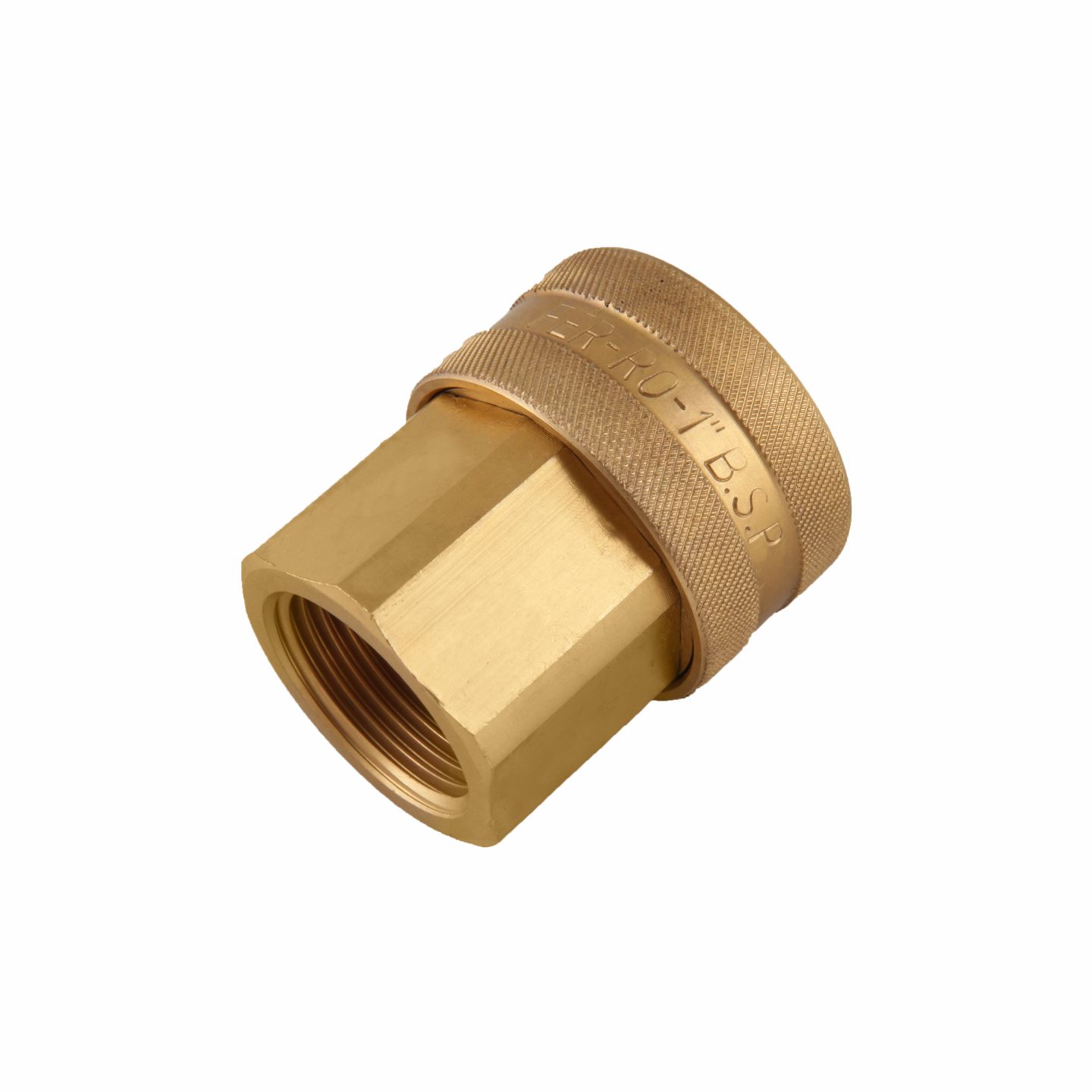

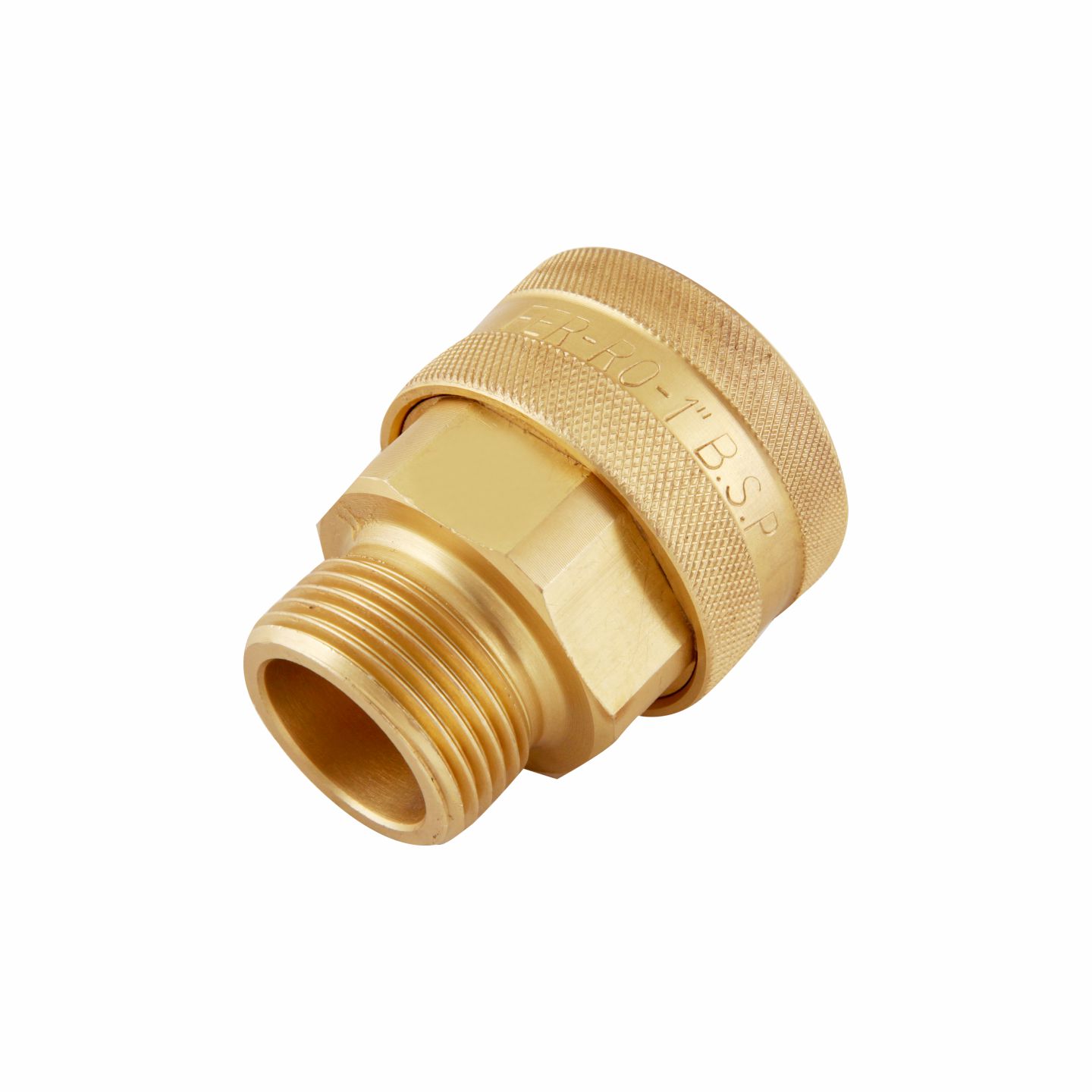

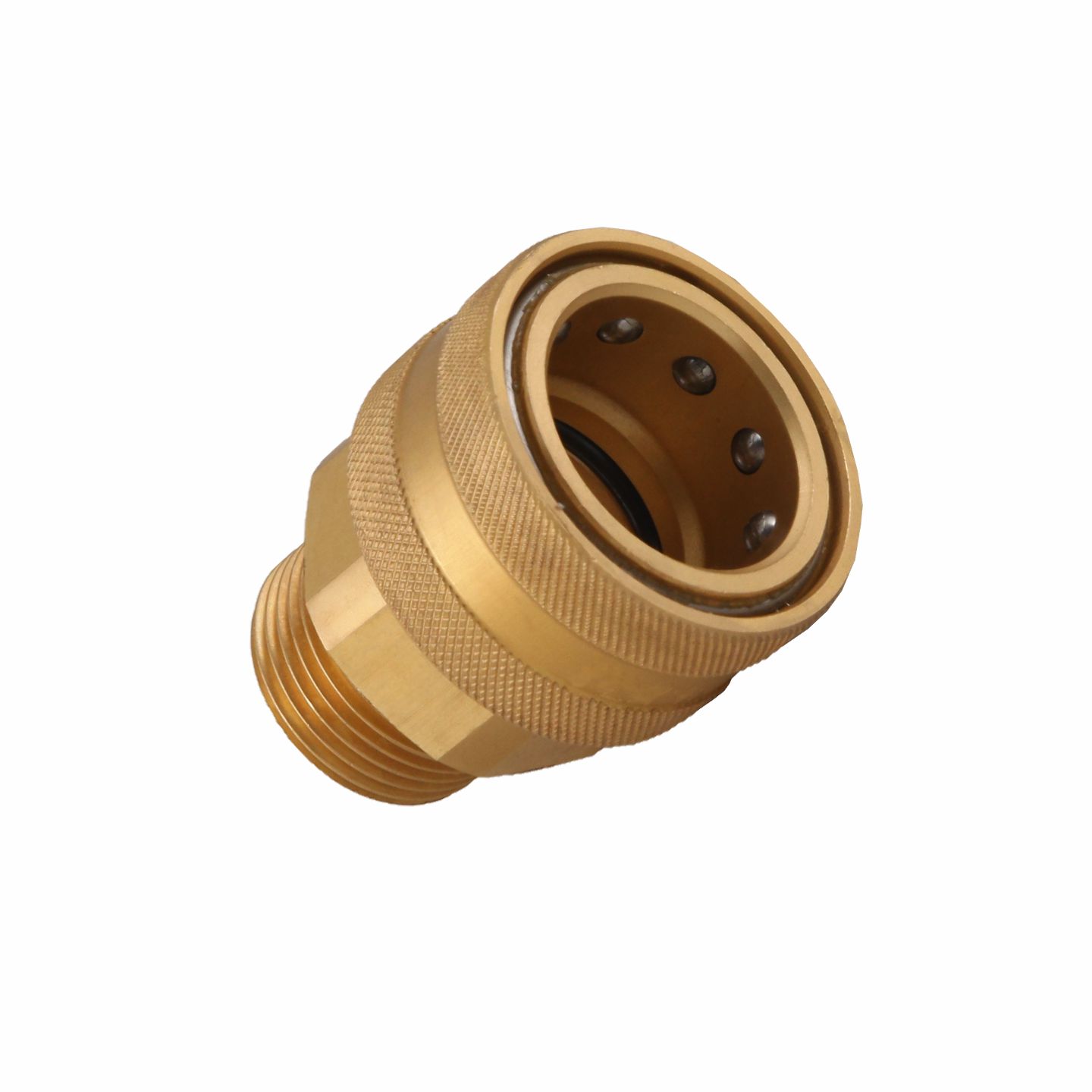

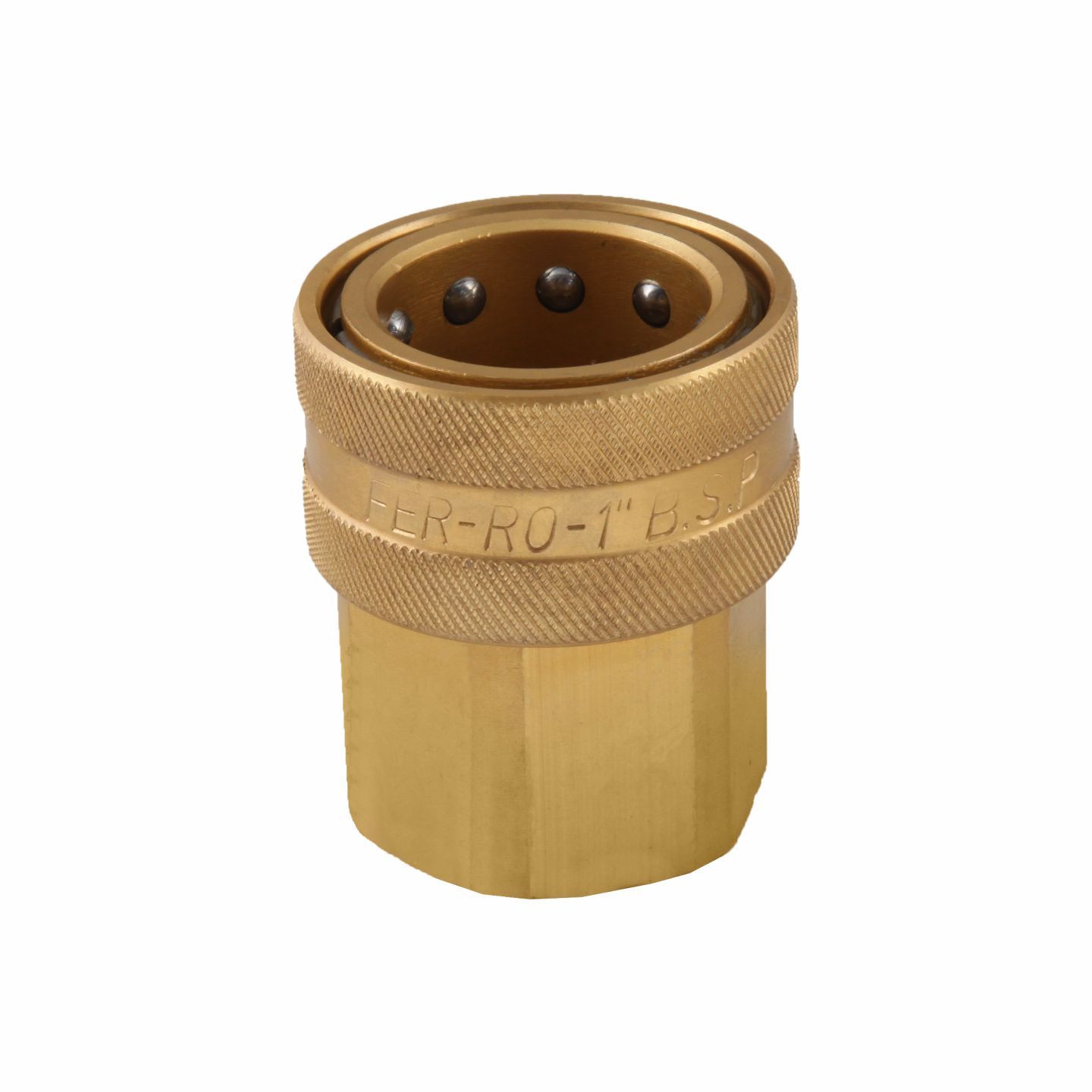

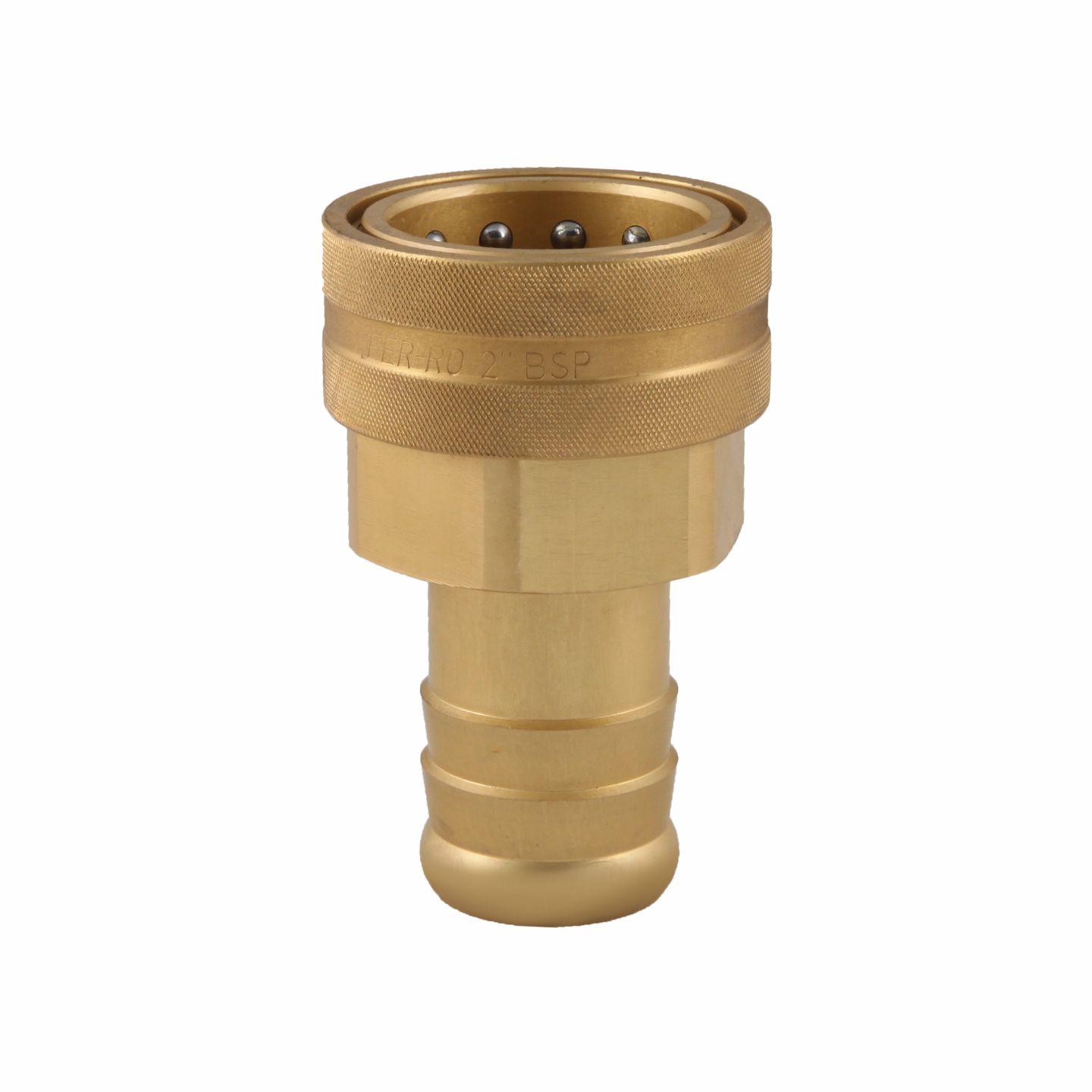

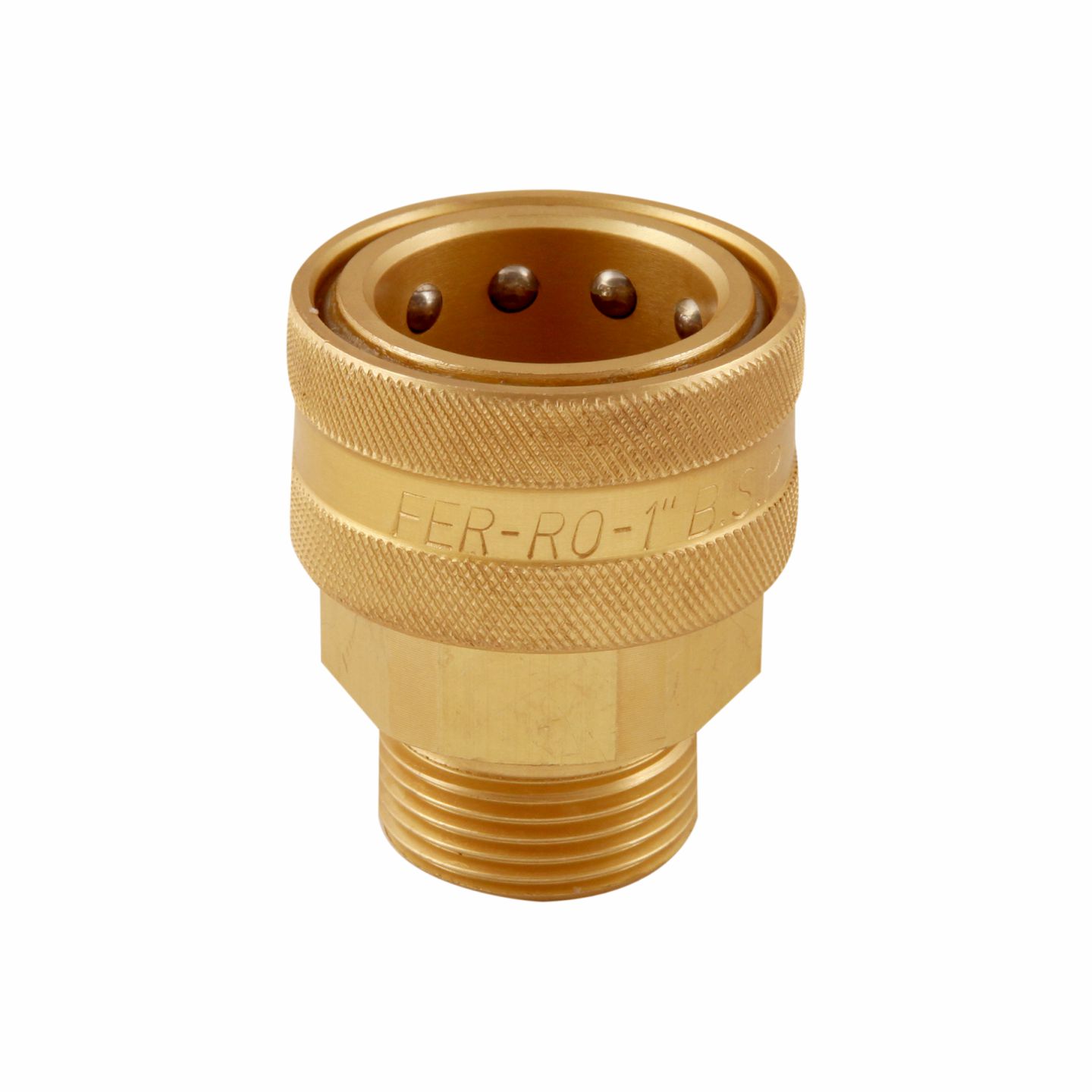

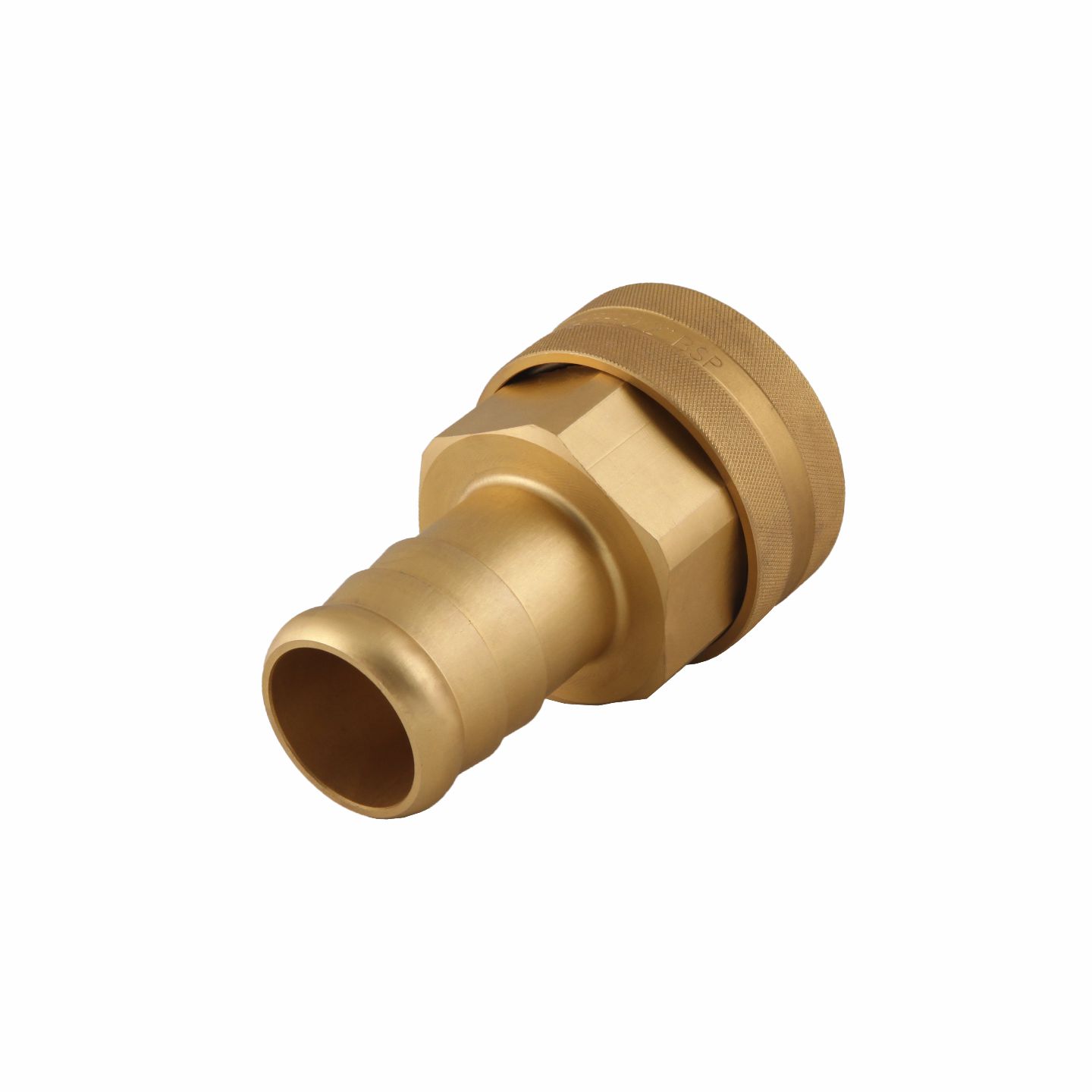

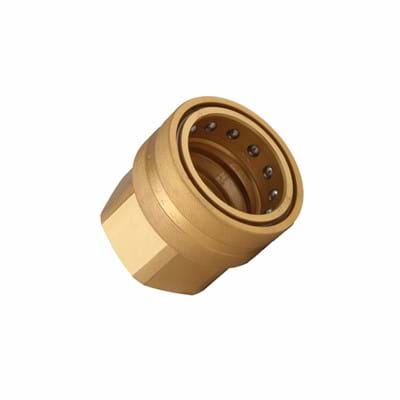

PHOTOS
