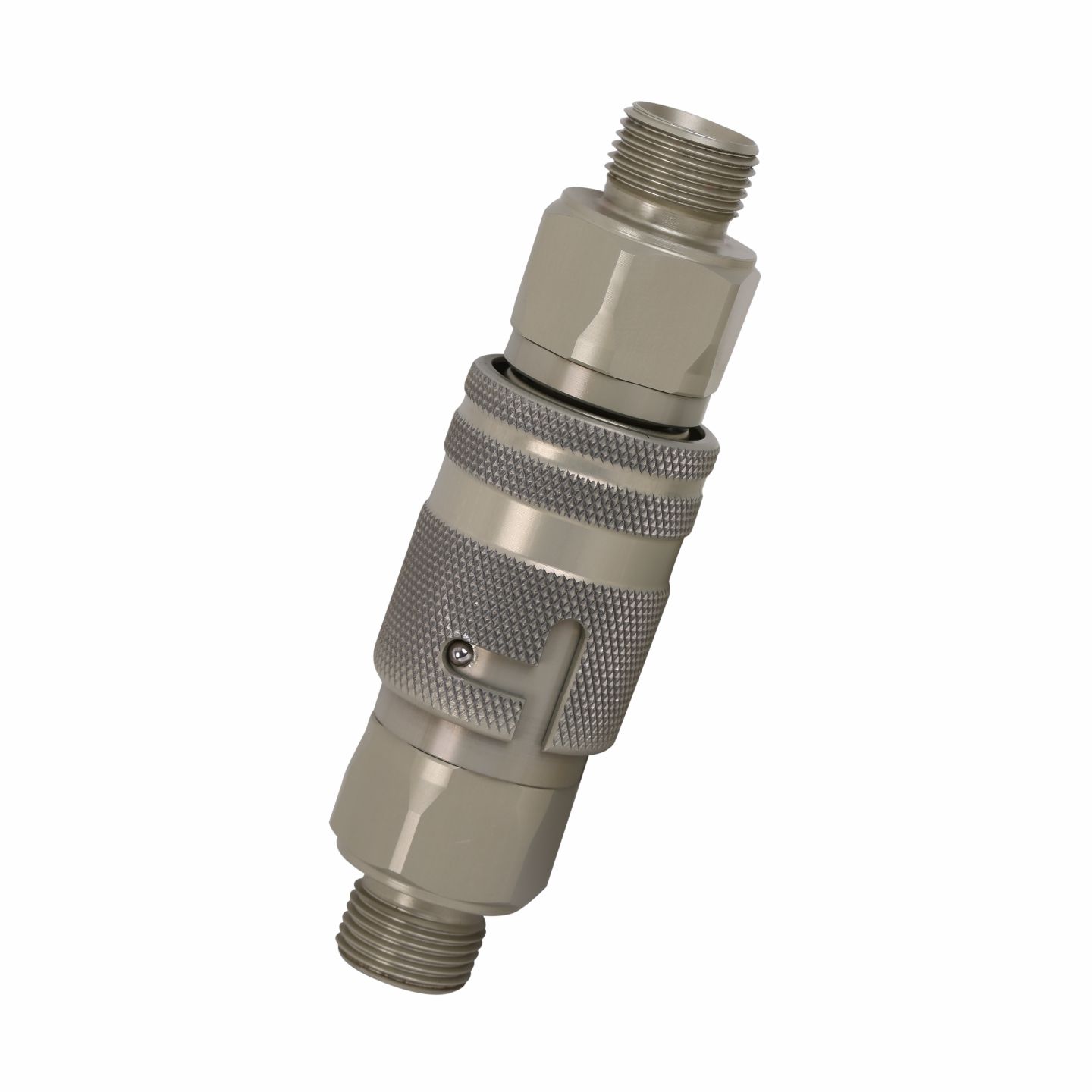

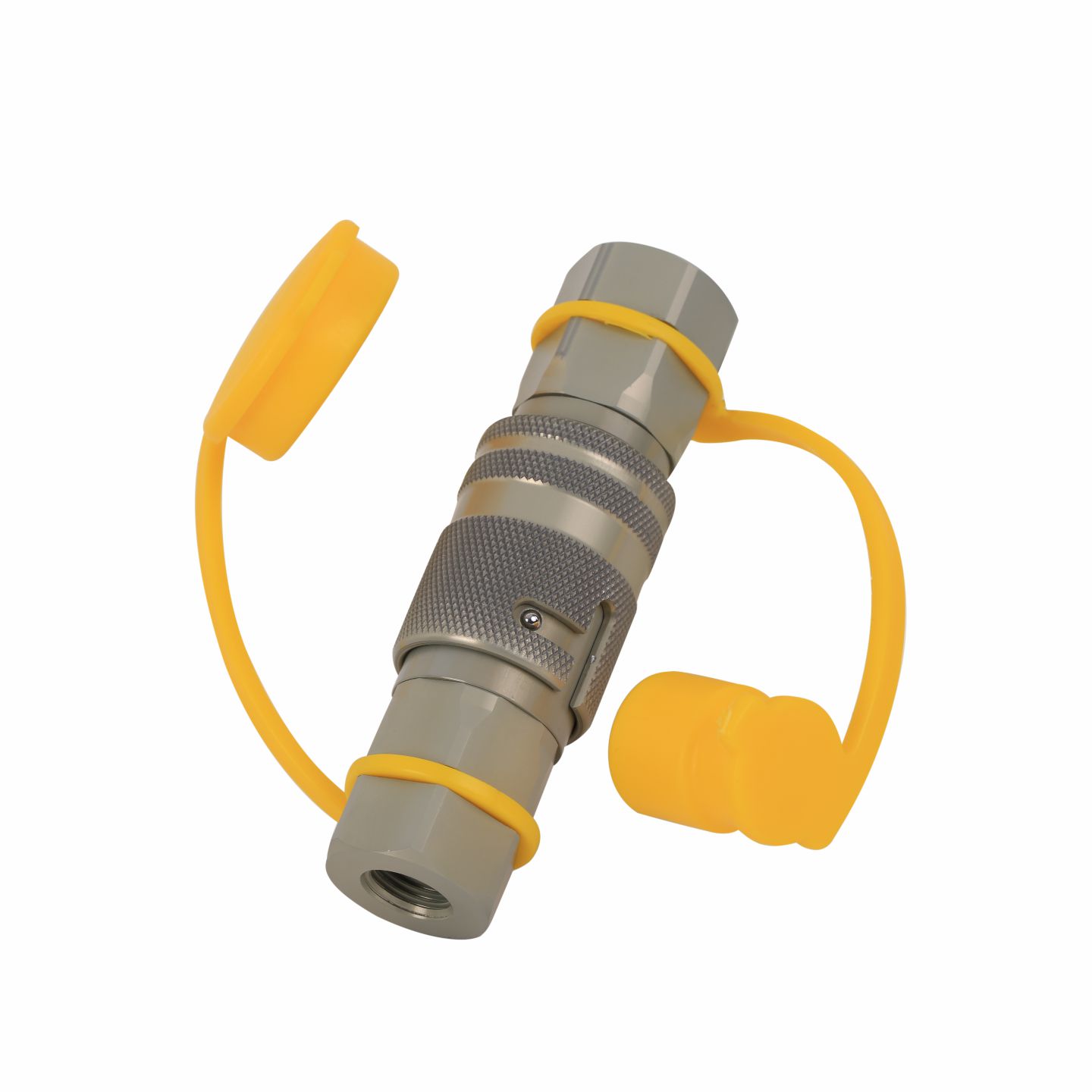

QCHT series Fer-ro Quick Couplings made of high-quality aluminium material for high-tech products allow to pass all kinds of chemical liquids especially water.
| Shut-off System | Poppet Valve |
| Material | Aluminium |
| Thread Size | BSP (Upon Request: Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | VITON & High temperature resistant |
| special spring (-30 °C & +225 °C), Polyurethane (PU) | |
| Applications | Aviation, construction, production, |
| national defense, mobile hydraulic |

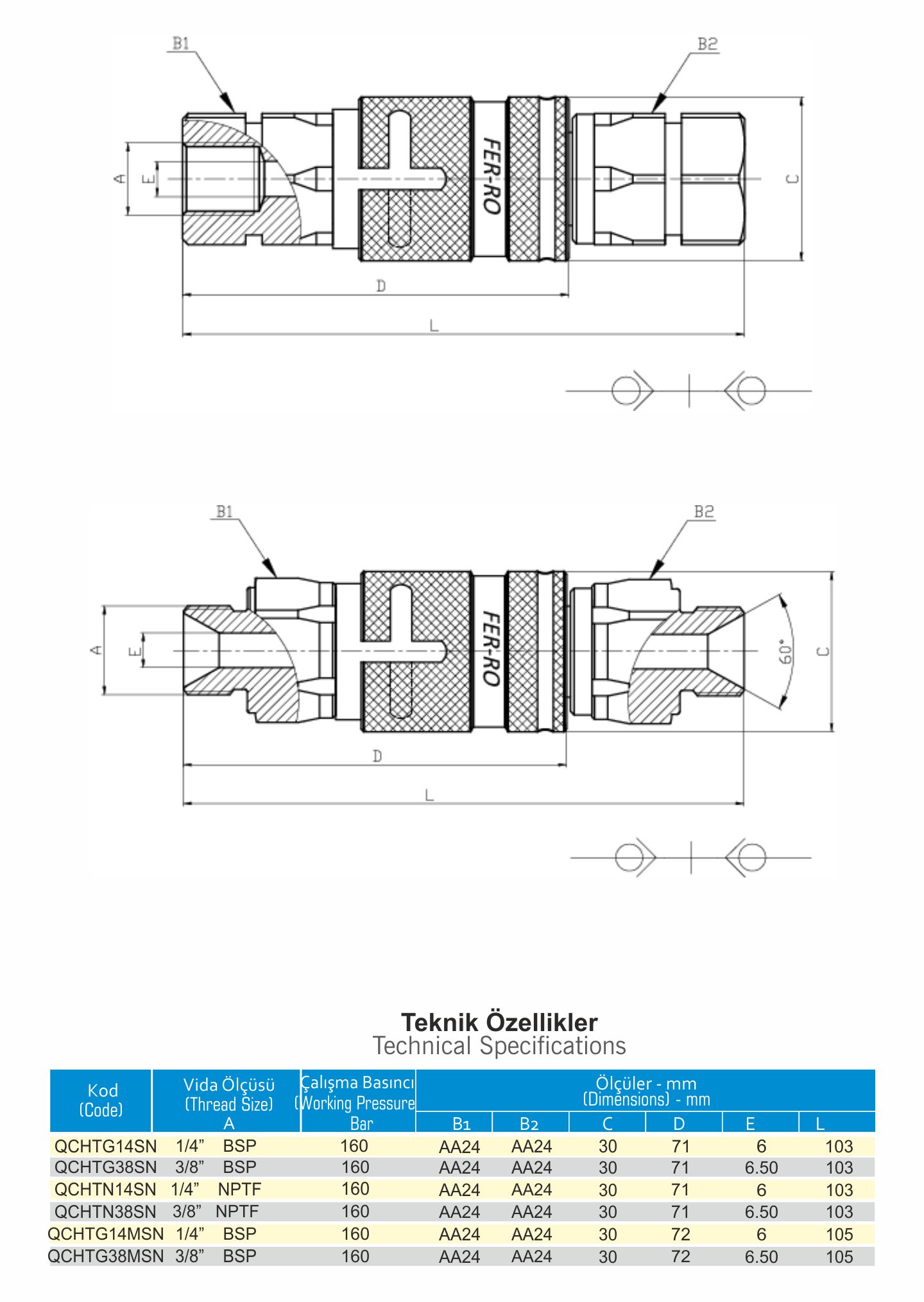

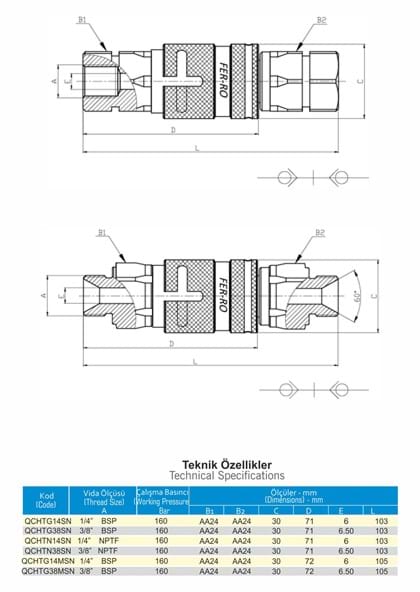

TECHNICAL DATA
PHOTOS
