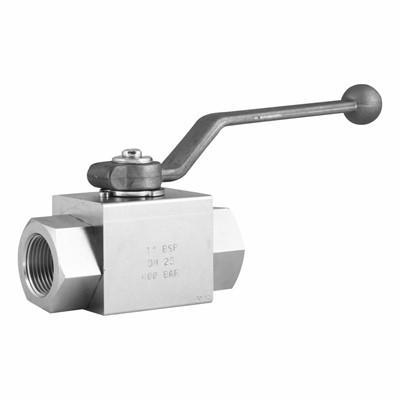

BV2RX SERIES HYDRAULIC 2-WAY BALL VALVES (ROX AGRICULTURAL SERIES)

BV2RX Series Hydraulic 2-Way Ball Valves are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2RX Series Ball Valves can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated.
BV2RX Ball Valves are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids.



Body Material Carbon steel
Ball Material  Hard chrome coated carbon steel.
Thread Size BSP, NPT
Ball Seats Delrin (POM)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request VITON
Applications Excavators, plastic injection mould machines,
  chemical processing plants, cranes, tankers,
  dump trucks and general hydraulic applications

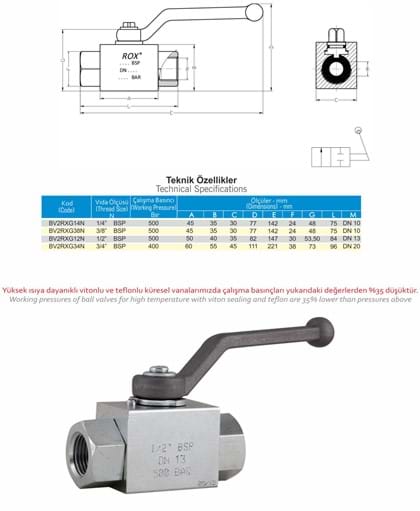

TECHNICAL DATA
PHOTOS
