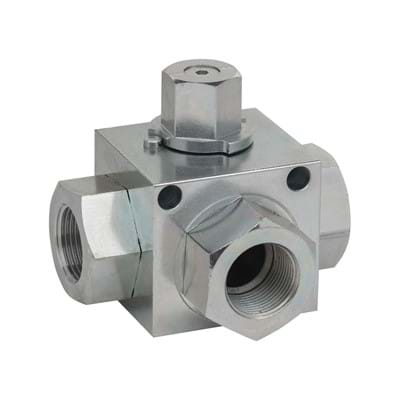

For BV3E Series Hydraulic Excavator 3-Way Ball Valves (With Mounting Holes), 2 different types, L-Bore and T-Bore, are available. 3-way ball valves are used for
applications where one input is directed to two other outputs, and their easy
operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation. BV3E Series Hydraulic Excavator 3-Way Ball Valves (With Mounting Holes) can be locked in the open or closed
position through locking washer on the circle pin. Internal ball is hard chrome
coated steel and delrin (POM) seated. Ball Valves are suitable for construction equipments.
| Body Material | Carbon steel |
| Ball Material | Hard chrome coated carbon steel. |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON (-30 °C - +225 °C) |
| Applications | Excavators, plastic injection mould machines, chemical processing plants, cranes, tankers, dump trucks and general hydraulic applications |

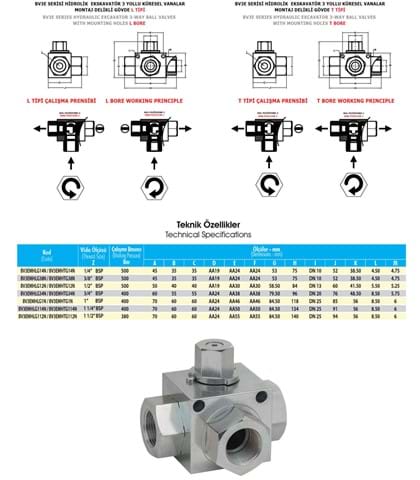

TECHNICAL DATA
PHOTOS
