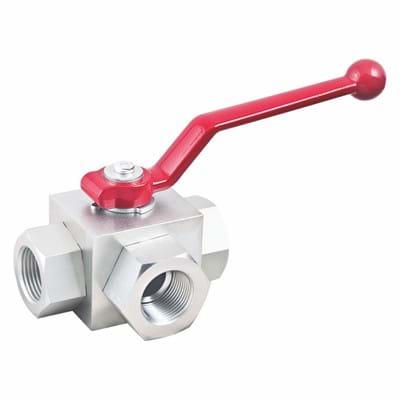

For BV3 Series Hydraulic 3-Way Ball Valves, 2 different types, L-Bore and T-Bore, are available. 3-way ball valves are used for applications where one input is directed to two other outputs, and their easy operation provides unrestricted flow.
Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation. BV3 Series Ball Valves can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated.
3-way ball valves are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids.
| Body Material | Carbon steel |
| Ball Material | Hard chrome coated carbon steel. |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON |
| Applications | Excavators, plastic injection mould machines, |
| chemical processing plants, cranes, tankers, | |
| dump trucks and general hydraulic applications |
