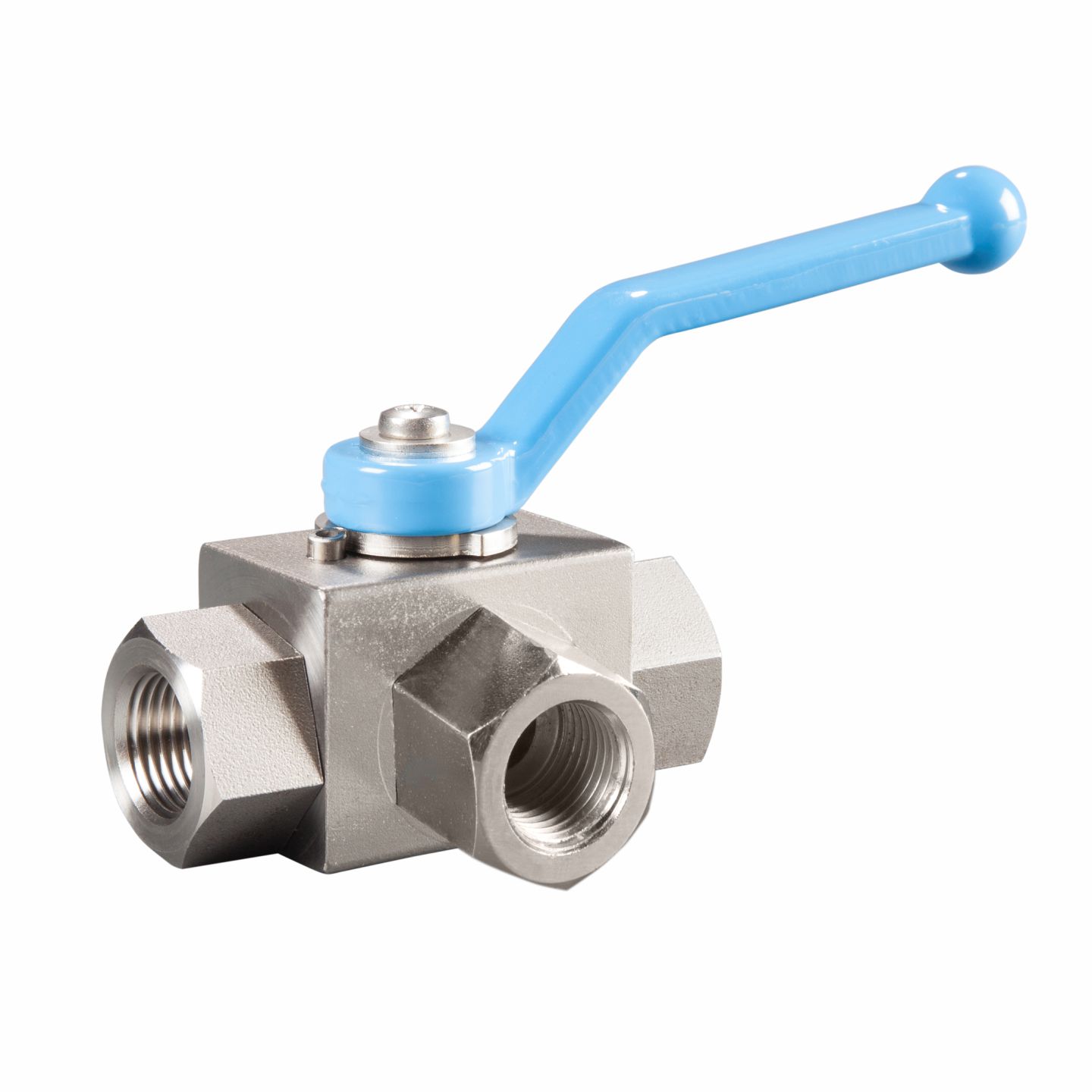

For BV3SS Series Hydraulic 3-Way AISI 316-L Stainless Steel Ball Valves, 2 different types, L-Bore and T-Bore, are available.
3-way ball valves are used for applications where one input is directed to two other outputs, and their easy operation provides unrestricted flow.
Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation. BV3SS Series Ball Valves can be locked in the open or closed position through locking washer on the circle pin.
BV3SS Series 3-Way AISI 316-L Stainless Steel Ball Valves have an excellent resistance to all kind of chemical and corrosion. Internal ball is stainless steel and delrin (POM) seated.
| Body Material | AISI 316 stainless steel |
| Ball Material | AISI 316 stainless steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Upon Request | VITON, EPDM ( For steam application) |
| Applications | Marine, food, pharmacy, medical, chemical, irrigation, |
| paper, paint, textile, gas and aviation |

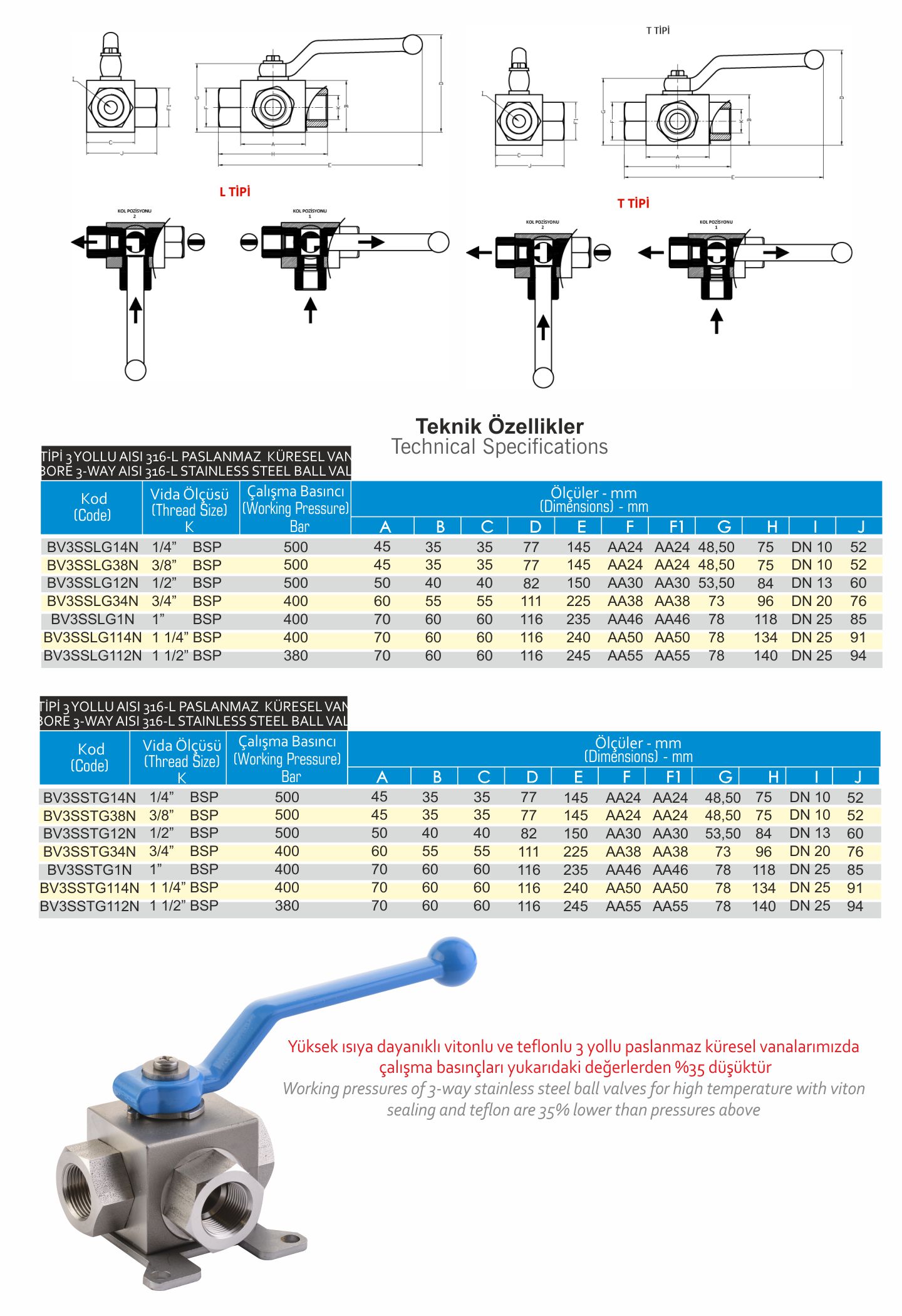

TECHNICAL DATA
PHOTOS
